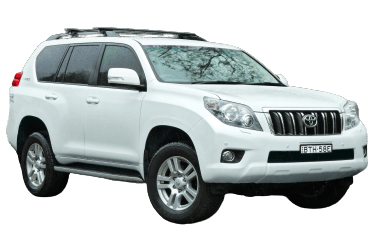

In its design, the Prado 150 series remains true to core traditions: a rigid body-on-frame ladder chassis remains an essential feature of the vehicle. The exterior styling reflects the flagship Land Cruiser 200 SUV, giving the vehicle a muscular and dynamic appearance. Compared to its predecessor, the vehicle features numerous innovations, including a modernized chassis and a Kinetic Dynamic Suspension System (KDSS) that dynamically adjusts suspension settings. Interior ergonomics and safety features have also been improved. As with previous generations, it is available in 3-door and 5-door body styles.
This article provides detailed fuse box diagrams for the Toyota Land Cruiser Prado (chassis code J150) across model years 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, and 2017.
Passenger Compartment Fuse Box
The passenger compartment fuse box is located on the driver side, under the lower portion of the dashboard.
Passenger compartment fuse box cover diagram.
| Passenger Compartment Fuse Box Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Auxiliary power outlet, Prado 150 cigarette lighter fuse | 15 |
| 2 | Power mirror actuators, air conditioning system, audio system, navigation system, park assist, sequential shift switch, turn signal indicator, DSS ECU No. 2, A/T EFI ECU indicator, Shift Lock ECU | 7.5 |
| 3 | Backup lights, audio system, multi-information display, DSS ECU No. 2, parking assist sensors | 10 |
| 4 | Trailer towing system | 10 |
| 5 | Electronically Modulated Air Suspension (AHC/AVS) | 20 |
| 6 | KDSS ECU | 10 |
| 7 | 4WD system, rear differential lock | 20 |
| 8 | Power seat (front left) | 30 |
| 9 | Door lock actuators, power sunroof, Body ECU | 25 |
| 10 | Pre-Crash Safety (PSB) ECU | 30 |
| 11 | Power tilt and telescopic steering column | 15 |
| 12 | Front fog lights | 15 |
| 13 | Data Link Connector 3 (DLC3) | 7.5 |
| 14 | Air conditioning system | 7.5 |
| 15 | Starting system | 7.5 |
| 16 | Power window (rear left) | 25 |
| 17 | Shift Lock ECU, VSC ECU, steering angle sensor, yaw rate sensor, sequential shift switch, rain sensor ECU, backup relay, heated outer mirrors, power tilt & telescopic steering column, PSB ECU, DSS ECU No. 1, millimeter wave radar sensor, power steering ECU, AFS ECU | 10 |
| 18 | Front turn signals, rear turn signals, side turn signals, trailer lights, alternator, VSC, cruise control switch | 7.5 |
| 19 | Rear window defogger, seat heater switches, inverter relay, air conditioning, electrochromic mirror, Body ECU, auxiliary heater switch, navigation system, DSS ECU No. 2, sunroof ECU, combination meter switch, parking assist sensors, accessories, power folding seat ECU, overhead console IG, windshield wiper de-icer, AFS ECU, rain sensor, air suspension, power seat indicator | 10 |
| 20 | Seat heaters | 20 |
| 21 | Power seat (front right) | 30 |
| 22 | Power window (front right / passenger) | 30 |
| 23 | Power window master switch | 10 |
| 24 | Power window (front left / driver) | 25 |
| 25 | Power window (rear right) | 25 |
| 26 | Power sunroof | 25 |
| 27 | Windshield wipers and washer | 30 |
| 28 | Windshield wipers/washer, rear window wiper/washer | 20 |
| 29 | Cool box | 10 |
| 30 | EFI ECU, circuit opening relay, VSC ECU, SRS airbag ECU, Smart Entry & Start System, steering lock ECU, CAN gateway ECU | 10 |
| 31 | Combination meter / gauges | 7.5 |
| 32 | Switch illumination, glove box light, navigation system, audio system, air conditioning system, power mirror switch, power seat folding switch, multi-information display, power seat indicator, shift indicator, cool box | 7.5 |
| 33 | Parking lights, tail lights, license plate lights, EFI ECU, rear fog lights, trailer towing, front fog lights | 10 |
Engine Compartment Fuse Box
The engine compartment fuse box is located on the right side of the engine bay, adjacent to the battery.
Engine compartment fuse box access.
| Engine Compartment Fuse Box Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Rear air conditioning system | 40 |
| 2 | PTC heater | 30 |
| 3 | Air suspension system (AIR SUS No. 2) | 50 |
| 4 | AC inverter | 15 |
| 5 | Rear window defogger | 30 |
| 6 | Rear fog lights | 7.5 |
| 7 | Windshield wiper de-icer | 20 |
| 8 | Fuel heater | 25 |
| Heater blower fan | 10 | |
| 9 | PTC heater | 30 |
| 10 | 50 | |
| 11 | Fuel injectors, ignition system, combination meter | 20 |
| 12 | Horn | 10 |
| 13 | EFI ECU, EDU, ECT ECU, fuel pump ECU, A/F sensor heater relay, FPC, EFI No. 2 | 25 |
| 14 | A/F sensor | 20 |
| 15 | Heated outside mirrors | 15 |
| 16 | Viscous heater | 10 |
| 17 | Power folding seat (left) | 30 |
| 18 | Power folding seat (right) | 30 |
| 19 | Air conditioning system | 10 |
| 20 | A/C condenser fan | 20 |
| 21 | Hazard flasher relay, stop lights, high-mount stop light, brake light switch, VSC/ABS ECU, trailer towing, Smart Entry & Start System, ECT ECU | 10 |
| 22 | Air suspension ECU | 7.5 |
| 23 | Headlight high beam (right) | 15 |
| 24 | Headlight high beam (left) | 15 |
| 25 | Air conditioning system | 50 |
| 26 | Rear window wiper and washer | 30 |
| 27 | Headlight washers | 30 |
| 28 | Starter motor | 30 * 3 40 * 4 |
| 29 | Dimmer relay, headlights | 25 |
| 30 | Alternator | 7.5 |
| 31 | Turn signal flasher: front/rear/side turn signals, combination meter turn indicators, trailer turn signals | 15 |
| 32 | Door lock actuators, power sunroof | 25 |
| 33 | EFI ECU | 10 |
| 34 | Fuel pump | 15 |
| 35 | Trailer towing | 30 |
| 36 | Air conditioning, AIR SUS, headlight washer, PTC heater, trailer towing, power folding seats, brake lights, rear window defogger, mirror heaters, condenser fan, rear fog lights, wiper de-icer, magnetic clutch, junction block, inverter, rear wiper, rear washer | 140 * 6 120 * 3.7 |
| 37 | Fuel injectors, ignition, gauges, EFI, A/F sensor heater, horn | 80 |
| 38 | Glow plugs | 80 |
| 39 | Audio system, navigation system, rear-seat entertainment (RSE) | 15 |
| 40 | Starting system | 7.5 |
| 41 | Navigation system | 10 |
| 42 | Spare | 7.5 |
| 43 | Audio system | 30 |
| 44 | ABS / VSC | 50 |
| 45 | ABS / VSC | 30 |
| 46 | Heater blower fan | 50 |
| 47 | Security alarm buzzer, self-powered siren, double-locking ECU | 10 |
| 48 | Smart Entry & Start System | 7.5 |
| 49 | Steering lock system | 20 |
| 50 | Trailer towing | 30 |
| 51 | Rear window wiper | 15 |
| 52 | Interior lights, personal lights, vanity mirror lights, door scuff lights, footwell lights, running board lights, overhead console module | 10 |
| 53 | Body ECU, gauges, heater, steering angle sensor, wireless remote control, seat memory, power tilt & telescopic steering column, multi-information display, Smart Entry & Start System, power folding seats, cool box, DSS ECU No. 2, steering wheel switches, overhead console | 10 |
| 54 | Headlight low beam (right), automatic headlight leveling system | 15 |
| 55 | Headlight low beam (left) | 15 |
| 56 | Solenoids, fuel injectors, ignition, ECT ECU, noise filter | 10 |
| 57 | O2 sensor, AFM, ACIS VSV, AI COMB, AI driver, EGR VRV, swirl control VSV, swirl control VSV 2, engine cut VSV, EGR cooler bypass VSV, D-slot rotary solenoid, AI VSV relay | 10 |
| 58 | DSS ECU No. 1 | 7.5 |
| 59 | Rear window washer | 15 |
| 60 | Spare | - |
| 61 | - | |
| 62 | - | |
