Most of the power supply circuits of the electrical equipment of the Japanese station wagon are protected by fuses. Powerful current consumers are connected via relays. Protective elements are installed in distribution boxes, which are located in the engine compartment and the passenger compartment.

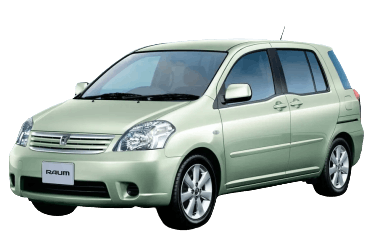

The information on the diagrams is relevant for Toyota Raum (Z20) 2WD & 4WD models 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 with a 1NZ-FE engine (1.5 l).
In the passenger compartment
Location of components (dashboard). 1 - electronic immobilizer control unit, 2 - headlight range control unit (models from 08.2005), 3 - camera controller (models up to 12.2006), 4 - receiver for central locking remote control system, 5 - receiver for SMART KEY system, 6 - electronic unit of the SMART KEY system, 7 - anti-icing brush turnip (models up to 72.2006), 8 - electronic engine control unit, 9 - electronic control unit SRS, 10 - fog lamp relay (models from 12.2006), 11 - turnip defroster of brushes (models from 12.2006), 12 - fuse box under the instrument panel, 13 - connector (CAN no. 7) (models from 12.2006).
The end part of the fuse board.
| Diagram | ||
|---|---|---|
|
||
| # | Decoding | A |
| A / C (HTR) |
|
7.5 |
| ECU-B |
|
7.5 |
| ACC |
|
7.5 |
| ECU-IG |
|
7.5 |
| RR FOG | Rear fog lamps | 7.5 |
| PANEL1 |
|
7.5 |
| PANEL2 |
|
7.5 |
| GAUGE |
|
10 |
| STOP |
|
10 |
| M / HTR | Heated rear window, defroster and defroster | 10 |
| TAIL |
|
10 |
| CIG | Connector for additional equipment (socket), cigarette lighter | 15 |
| TURN HAZ | Direction indicators and hazard warning lamps | 10 |
| FR FOG |
|
15 |
| IG2 |
|
15 |
| WSH | Windshield and rear window wipers and washers | 15 |
| RR WIP | Rear window wiper and washer | 15 |
| FL DOOR | Power windows | 20 |
| RL DOOR | Power windows | 20 |
| FR DEICER | Heated rear window, defroster and defroster | 20 |
| RR DOOR | Power windows | 20 |
| WIP | Windshield wipers and washers | 20 |
| DOOR |
|
25 |
| FR DOOR | Power windows | 25 |
| DEF | Heated rear window, defroster and defroster | 30 |
| PSD | Electric drive and system of closing the left and right sliding doors | 30 |
|
||
In the engine compartment
Location of components (engine compartment).
- ABS relay box,
- relay box # 2 in the engine compartment,
- additional fuse box
- main fuse box in the engine compartment.
Main fuse box
The photo shows an example.
| Diagram | ||
|---|---|---|
|
||
| # | Description | A |
| DOME |
charging system, 1nz-fe engine management system and automatic transmission, ABS, TRC, VSC, SRS, central locking, Electric drive and a system to facilitate closing the right and left sliding doors, Warning system for a key left in the ignition switch and lamps not switched off, warning system for an unfastened seat belt, instrument cluster, headlamps, interior lamps |
7.5 |
| ST | instrument cluster, starting system (models from 0.8.2005) | 10 |
| HORN | Sound Signal | 10 |
| EFI | 1nz-fe engine management system and automatic transmission, immobilizer | 15 |
| H-LP LH | Headlamps (not xenon) | 15 |
| H-LP LO LH | Headlamps (xenon) | 15 |
| H-LP LO RH | 15 | |
| H-LP RH | Headlamps (not xenon) | 15 |
| RAD # 1 | Radio cassette | 15 |
| AM2 | Starting system (models up to 08.2005} | 25 |
| AM2 | Starting system (models from 08.2005) | 30 |
| RDI | Fan electric drive | 30 |
| ST | Starting system (models up to 08.2005} | 30 |
| ABS No. 1 | ABS, TRC and VSC | 40 |
| HTR | Air conditioning | 40 |
Relay box #2
#2 in the picture.
| Diagram | ||
|---|---|---|
|
||
| H-LP HI LH | Headlamps | 10 A |
| H-LP HI RH | ||
Additional fuse block
#3 in the picture.
| Diagram | ||
|---|---|---|
|
||
| ABS | ABS, TRC and VSC | 60 |
| MAIN | Starting system, headlamps | |
ABS relay box
#1 in the picture.
| Diagram |
|---|
|
