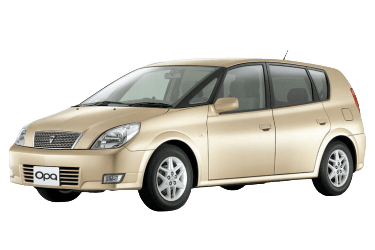

Opa is based on Toyota Vista. Car engine power - 136 HP Modifications with a 2-liter inline engine with D4 injection system are equipped with a CVT (Continuously Variable Transmission). In this article, we will take a detailed look at the fuse box diagrams for the Toyota Opa 1st generation (XT10) 2000, 2001, 2002, 2003, 2004, 2005 release.
Here you will find the locations and photos of distribution boxes. The fuses responsible for the “Cigarette lighter” and “Fuel Pump” are highlighted in bold.
In the engine compartment
General layout of electrical equipment.
|
|
| 1 | SRS sensor |
| 2 | |
| 3 | Main fuse box |
| 4 | Additional fuse box |
The additional engine compartment fuse box contains the starter and injector relays, as well as a 7.5 A fuse responsible for the starting system.
Main fuse box
Located near the battery behind a protective cover.
Photo is an example of execution.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| ECU-B | Ignition system | 7.5 |
| Engine management system (1ZZ-FE, except 2WD from 09.2005) | ||
| Automatic transmission control system and automatic transmission selector position indicator backlight (1ZZ-FE, except 2WD from 09.2005) | ||
| Anti-lock braking system | ||
| Power windows | ||
| central locking | ||
| The warning system about the left in the ignition lock | ||
| Seat belt warning system | ||
| Electric sunroof | ||
| Immobilizer system | ||
| Instrument cluster | ||
| Audio system, navigation system, BLIND CORNER MONITOR system and rear view system (models up to 09.2005) | ||
| Clock | ||
| Backlight | ||
| Interior lamps | ||
| Automatic lighting control system | ||
| Automatic air conditioner | ||
| Engine and CVT control system and shift indicator lights (1AZ-FSE) | ||
| Anti-lock braking system (TRC and VSC models) | ||
| Audio system, navigation system, BLIND CORNER MONITOR system, rear view system and rear TV (models up to 09.2005) | ||
| Engine and automatic transmission control system and automatic transmission selector position indicator backlight (1ZZ-FE, 2WD from 09.2005) | ||
| Audio system, navigation system and rear view system (models from 09.2005) | ||
| ALT-S | Charging system | 10 |
| DOME | Instrument cluster | 10 |
| Headlamps (1ZZ-FE without xenon) | ||
| Interior lamps | ||
| ATC-S | Engine and CVT control system and shift indicator lights (1AZ-FSE) | 10 |
| Engine and automatic transmission control system and automatic transmission selector position indicator backlight (1ZZ-FE, 2WD from 09.2005) | ||
| HORN | Sound signal | 10 |
| TURN-HAZ | Turn signal and hazard warning lamps (flasher) | 10 |
| AC INV | Connector for additional equipment (socket) | 15 |
| EFI | Engine management system (1ZZ-FE, except 2WD from 09.2005) | 15 |
| Automatic transmission control system and automatic transmission selector position indicator backlight (1ZZ-FE, except 2WD from 09.2005) | ||
| Immobilizer system | ||
| Engine and automatic transmission control system and automatic transmission selector position indicator backlight (1ZZ-FE, 2WD from 09.2005) | ||
| EFI2 | Ignition system | 15 |
| Engine and CVT control system and shift indicator lights (1AZ-FSE) | ||
| H-LP LH | Headlights (1ZZ-FE without xenon headlights) H-LP RH | 15 |
| Headlights (1ZZ-FE without xenon headlights) RAD No. 1 | ||
| Audio system | ||
| Audio system, navigation system, BLIND CORNER MONITOR system, rear view system and rear TV | ||
| Audio system, navigation system and rear view system (models from 09.2005) | ||
| Automatic transmission control system | ||
| EFI | Immobilizer system | 20 |
| Engine and CVT control system and shift indicator lights (1AZ-FSE) | ||
| ABS No. 2 | Anti-lock braking system (2WD without VSC / models with TRC and with VSC) | 25 |
| Anti-lock braking system (4WD) | 30 | |
| CDS | Fan electric drive (except 1ZZ-FE, 2WD) | 30 |
| RDI | Fan electric drive | 30 |
| ABS No. 1 | Anti-lock braking system ABS (4WD / 2WD without VSC) | 30 |
| HTR | Automatic air conditioner | 40 |
| MAIN | Instrument cluster | 40 |
| Headlamps (models with xenon headlights) | ||
| Headlamps (1ZZ-FE without xenon headlights) | ||
| Rear fog lamps | ||
| Headlamps lights (1AZ-FSE up to 09.2005) | ||
| Automatic headlamp leveling control system | ||
| ABS No. 1 | Anti-lock braking system (TRC and VSC models) | 50 |
| EMPS | Electric power steering | 50 |
| ALT | Ignition system | 120 |
| The warning system about the left in the ignition switch and the switched off lighting | ||
| Clock | ||
| Headlights (1ZZ-FE without xenon headlights) | ||
| Fog lamps | ||
| Rear fog lamps | ||
| Automatic headlamp control system | ||
| Backlight | ||
| parking lamps | ||
| Heated rear window and heated mirrors | ||
|
||
| R1 | cooling Fan | |
| R2 | ||
| R3 | Horn relay | |
| R4 | cooling Fan | |
| R5 | Engine management | |
| R6 | ||
In the passenger compartment
General layout of electronic modules.
|
|
| No. | Description |
| 1 | Toyota Opa fuel pump relay |
| 2 | Engine ECU |
| 3 | under-dash fuse and relay box (MULTIPLEX) |
| 4 | SRS ECU |
| 5 | fog lamp relay module |
| 6 | turn signal interrupter relay module |
| 7 | defroster relay module |
| 8 | additional fuse box. |
Fuse box
Fuse box located under the dashboard. To access, you need to remove the glove compartment.
General view of the distribution box.
| Diagram | ||
|---|---|---|
|
||
| No. | Decoding | A |
| RR FOG | Rear fog lamps | 7.5 |
| A / C | Seat Belt Not Fastened Warning System | 10 |
| Clock | ||
| Automatic air conditioner | ||
| Heated rear window and mirrors | ||
| MIR HTR | Heated rear window and mirrors | 10 |
| TAIL | Warning system about the left in the ignition switch and the lighting not turned off | 10 |
| Headlights (1ZZ-FE without xenon headlights) | ||
| Fog lamps | ||
| Rear fog lamps | ||
| Backlight | ||
| Tail lamps | ||
| ACC | Toyota Opa cigarette lighter fuse | 15 |
| Accessory connector (female) | ||
| FR DEF | De-icer brushes | 15 |
| FR FOG | Fog lamps | 15 |
| IGN | Ignition system | 15 |
| Engine management system (1ZZ-FE, except 2WD from 09.2005) | ||
| Automatic transmission control system and automatic transmission selector position indicator backlight (1ZZ-FE, except 2WD from 09.2005) | ||
| SRS system | ||
| Immobilizer system | ||
| Engine and CVT control system and shift indicator lights (1AZ-FSE) | ||
| Engine and automatic transmission control system and automatic transmission selector position indicator backlight (1ZZ-FE, 2WD from 09.2005) | ||
| RR WIPER | Rear window wiper and washer | 15 |
| STOP | Engine management system (1ZZ-FE, except 2WD from 09.2005) | 15 |
| Automatic transmission control system and automatic transmission selector position indicator backlight (1ZZ-FE, except 2WD from 09.2005) | ||
| Anti-lock braking system (4WD / 2WD without VSC) | ||
| Switch lock | ||
| Stop lamps | ||
| Engine and CVT control system and shift indicator lights (1AZ-FSE) | ||
| Anti-lock braking system (TRC and VSC models) | ||
| Engine and automatic transmission control system and automatic transmission selector position indicator backlight (1ZZ-FE, 2WD from 09.2005) | ||
| WIPER | Windshield / rear window wiper and washer | 20 |
| DOOR | Interior lamps | 25 |
| RR DEF | Heated rear window and heated mirrors | 25 |
| FRP / W | Power windows | 30 |
| central locking | ||
| PWR | Power windows | 30 |
| Electric sunroof | ||
| ECU-ACC | Switch lock | 7.5 |
| Power mirrors | ||
| Warning system about the left in the ignition switch and the lighting not turned off | ||
| Audio system | ||
| Engine and CVT management system and shift indicator lights (1AZ-FSE up to 09.2005) - Audio system, navigation system, BLIND CORNER MONITOR system, rear view system and rear TV (models up to 09.2005) | ||
| Engine and automatic transmission control system and automatic transmission selector position indicator backlight (1ZZ-FE, 2WD from 09.2005) | ||
|
||
| Audio system, navigation system, BLIND CORNER MONITOR system, rear view system and rear TV | ||
| Automatic transmission control system | ||
| ECU-IG | Charging system - Electric fan drive - Anti-lock braking system (2WD without VSC) - Anti-lock braking system (4WD) | 7.5 |
|
||
| Audio system, navigation system, BLIND CORNER MONITOR system and rear view system | ||
| Headlamps (models with xenon) | ||
| Connector for additional equipment (socket) | ||
| Anti-lock braking system (TRC and VSC models) | ||
| Central locking (models with central locking with Smart Key function) - Audio system, navigation system, BLIND CORNER MONITOR system, rear view system and rear TV | ||
| GAUGE | Automatic transmission control system and automatic transmission selector position indicator backlight (1ZZ-FE, except 2WD from 09.2005) | 7.5 |
| Power windows | ||
| central locking | ||
| The warning system about the left in the ignition switch and the switched off lighting | ||
| Seat belt warning system | ||
| Electric sunroof | ||
| Audio system, navigation system, BLIND CORNER MONITOR system and rear view system | ||
| Turn signal lamps and hazard warning lamps (flasher) | ||
| Automatic lighting control system | ||
| Reversing lamps | ||
| De-icer brushes | ||
| Engine and CVT control system and shift indicator lights (1AZ-FSE up to 09.2005) | ||
| Audio system, navigation system, BLIND CORNER MONITOR system, rear view system and rear TV | ||
| Automatic transmission control system and automatic transmission selector position indicator backlight (1ZZ-FE, 2WD from 09.2005) | ||
| Automatic transmission control system and automatic transmission selector position indicator backlight (1AZ-FSE from 09.2005) | ||
| PANEL | Watch | 7.5 |
| Fog lamps | ||
| Rear fog lamps | ||
| Backlight | ||
| Relay modules | ||
| R1 | Heater | |
| R2 | IGN | |
| R3 | Heated rear window relay | |
| R4 | Tail lamps relay | |
