Fuses Toyota Sienta / Porte / WiLL Cypha, 2002 - 2015

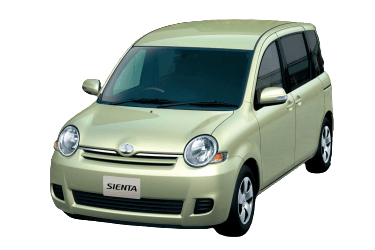

The Sienta / Porte / WiLL Cypha models are Toyota subcompact vans. These are three-door minivans, with a platform based on the Vitz. In this article, we will take a detailed look at the fuse box diagrams for the 1st generation Toyota Porte (NP10), Sienta (NCP80) and WiLL Cypha (XP70): 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 , 2013, 2014, 2015 release.

Here you will find the locations and photos of distribution boxes. The fuses responsible for the “Cigarette lighter” and “Fuel Pump” are highlighted in bold.

In the engine compartment

Next to the battery is the main fuse box, and on the battery itself there is a board consisting of high-power fuse-links. Depending on the configuration, one unit responsible for daytime running lights, and one more responsible for the ABS system, can also be installed under the hood.

Fuse box

Photo - an example of the execution of the main block.

Diagram of the main engine compartment fuse box
No.	Description	A
1	DOME - Clock, instrument cluster, dual lock, headlamps, interior lamps, warning buzzer, multi-information display, audio system, door lock control unit	15
2	EFI - Engine control module, immobilizer, transmission control unit	15
3	HORN - Sound signal	15
4	AM2 - Charging system, instrument cluster, engine control unit, immobilizer, gearbox control unit, multi-information display, SRS airbag system, ignition system	15
5	ST - Starting system	30
6	Empty	-
7	H − LP LH - Left headlamp, headlamp range control	10
8	H − LP RH - Left headlamp, headlamp range control	10
9	P / POINT - 12V power outlet	15
10	Empty	-
11		-
12		-
13	Empty	-
14	Empty	-
15	RDI - Cooling fan	30
16	HTR SUB1 - Auxiliary heater (PTC)	50
17	Empty	-
Purpose of relay modules
R1	Cooling fan
R2
R3	Starter
R4	Empty
R5	Power Outlet
R6	Auxiliary heater (PTC)
R7	EFI system
R8	A / C Compressor Clutch
R9	Horn relay

Fusible links

Located on the battery.

Diagram
No.	Description	A
1	MAIN - Fuses: "EFI", "DOME", "HORN", "ST", "AM2", "H − LP LH", "H − LP RH", "H − LP LH (HI)", "H −LP RH (HI) "," H − LP LH (LO) "," H − LP RH (LO) "	60
2	START / STOP system	80
3	ALT - Fuses: "ECU-B", "TAIL", "D / L", "OBD", "RDI", "AM1", "HAZ", "HTR", "HTR-SUB1", "POWER", "STOP", "DEF", Charging system	100/120
4	ABS system	60

ABS block

Diagram.

1	ABS fuse # 3 - models without VSC or Empty - models with VSC
A	models without VSC - empty; models with VSC - ABS MTR relay
B	models without VSC - ABS MTR relay; models with VSC - ABS CUT relay
C	models without VSC - ABS SOL relay; models with VSC are empty.

Additional distribution box

Responsible for daytime running lamps.

1	H-LP HI RH - Headlamps right (daytime running lamps) - 10A
2	H-LP HI LH - Instrument cluster, headlamps left (daytime running lamps) - 10A
R1	Headlamps relay
R2	Dimmer (DIM)
R3	Empty

In the passenger compartment

Located on the driver's side behind the dashboard trim.

The photo shows an example.

Interior fuse block diagram Toyota Sienta / Porte / WiLL Cypha
No.	Decoding	A
1	GAUGE - Instrument panel, ABS, air conditioning, reversing lamps, charging system, instrument cluster, dual lock, door lock control module, engine control module, transmission control module, daytime running lights, warning buzzer, sunroof, power windows, gear selector lock gear, direction indicators, alarm, heater	10
2	DEF RLY - Heated rear window, heated mirrors	10
	DEF - Heated rear window, heated mirrors	20
3	D / L - Double lock, door lock control unit	25
4	TAIL - Front fog light, headlights, headlight range control, warning buzzer, rear fog light, side light	7.5
5	Empty	-
6	WIPER - Front and rear wiper and washer, door lock	20
7	ECU − B - Headlamps, rear fog lamps	7.5
8	FOG - Front fog lamps	15
9	ACC - Toyota Porte / Sienta / ViLL cigarette lighter fuse , clock, instrument cluster, warning buzzer, information display, socket, audio system, power mirrors	15
10	ECU − IG - ABS, interior lighting, information display, auxiliary heater (PTC), cooling fan, SRS airbag system, heater	7.5
11	OBD diagnostic connector	7.5
12	HAZ - Direction indicators, hazard warning lights	10
13	A / C - Air conditioning, heater	7.5
14	S-HTR - Heated seats	10
15	Empty	-
16	STOP - Engine Control Module, Transmission Control Module, Transmission Selector Lock, Stop Lamp	10
17	AM1 - Fuses: "ACC", "GAUGE", "DEF" ("DEF RLY",), "S-HTR", "WIPER", "ECU-IG"	50
18	POWER - Windows, sunroof	30
19	HTR - Air conditioner, heater	40
20	DEF - Heated rear window, heated mirrors	30
Purpose of relay modules
R1	Heater
R2	Hazard warning lamps (turn signals)
R3	Power (windows, sunroof)
R4	Fuel Pump Relay (Circuit Opening (C / OPN))
