Most electrical supply circuits in this vehicle are protected by fuses. High-draw electrical components—such as headlights, cooling fan motors, and the fuel pump—are connected via relays. Protective components are housed in power distribution boxes located in the engine compartment and the passenger compartment.

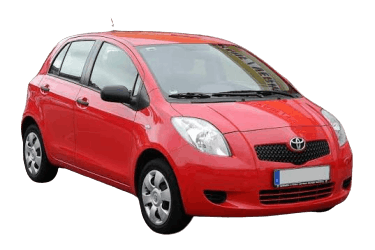

This guide provides comprehensive fuse box diagrams for the Toyota Vitz (chassis codes KSP90, SCP90, NCP91, NCP95; B platform; 2005–2010 models) equipped with 1.0 L (1KR-FE), 1.3 L (2SZ-FE, 2NZ-FE), and 1.5 L (1NZ-FE) engines.
Engine Compartment
Fuse Box
Located on the driver side under a plastic cover.
| Diagram | ||
|---|---|---|
|
||
| No. | A | Circuit Protected |
| 1 | 15 | AM2: Fuel injection system, ignition system |
| 2 | 10 | Horn |
| 3 | 20 | EFI: Electronic fuel injection, engine management system |
| 4 | 20 | Windshield wiper de-icer |
| 5 | 30 | ABS, VSC system |
| 6 | 30 | MAIN: Low / high beam headlights |
| 7 | 30 | ST: Starting system |
| 8 | 20 | Steering lock system |
| 9 | 15 | Audio system, interior lighting |
| 10 | 7.5 | ECU-B: Engine control unit, immobilizer, instrument cluster and gauges |
| 11 | 7.5 | ALT-S: Alternator charging system |
| 12 | 10 | ETCS: Electronic throttle control system, automatic transmission control |
| 13 | 10 | Hazard warning lights, turn signals |
| 14 | 10 | Models with halogen lamps: Headlight (right) / Low beam (right) |
| 15 | Models with HID lamps: Low beam (right) | |
| 15 | 10 | Models with halogen lamps: Headlight (left) / Low beam (left) |
| 15 | Models with HID lamps: Low beam (left) | |
| 16 | 10 | Engine management system |
| Relays | ||
|
||
|
||
Relay Box
Located on the passenger side.
| Diagram | ||
|---|---|---|
|
||
| No. | A | Circuit Protected |
| 1 | 10 | Electric oil pump |
| 2 | 10 | Air conditioning system (A/C) |
| 3 | 10 | Headlight (right) |
| 4 | 10 | Headlight (left) |
| Relays | ||
| Type 1 | ||
|
||
| Type 2 | ||
|
||
Passenger Compartment
Fuse box location.
| Diagram | ||
|---|---|---|
|
||
| No. | A | Circuit Protected |
| 1 | 15 | P S-HTR: Front passenger seat heater |
| 2 | 15 | D S-HTR: Driver seat heater |
| 3 | 20 | Windshield wipers |
| 4 | 15 | Rear window wiper |
| 5 | 15 | Windshield and rear window washers |
| 6 | 10 | ECU IG: ABS, TRC/VSC system, electric power steering (EPS), immobilizer |
| 7 | 10 | GAUGE: Instrument panel gauges and indicators |
| 8 | 7.5 | OBD-II diagnostic system |
| 9 | 10 | Stop lamps (brake lights) |
| 10 | - | Unused |
| 11 | 25 | Central door locking system |
| 12 | 15 | Front fog lamps |
| 13 | - | Unused |
| 14 | 10 | Tail lamps, parking lamps, license plate light |
| 15 | 25 | AM1: Fuel injection system |
| 16 | 7.5 | Turn signal side repeaters, parking lamps, rear combination lamps, license plate light |
| 17 | 7.5 | Interior lighting, instrument panel illumination, cluster |
| 18 | 7.5 | Air conditioning system (A/C) |
| 19 | 20 | Power windows |
| 20 | 20 | Rear left power window |
| 21 | 20 | Rear right power window |
| 22 | - | Unused |
| 23 | 15 | Cigarette lighter |
| 24 | 7.5 | Central door locking, power side mirrors, audio system |
| 25 | - | Unused |
| 26 | 10 | Fuel injection system |
| 27 | - | Unused |
| 28 | 7.5 | Spare fuse |
| 29 | 7.5 | Front fog lamps |
| 30 | 7.5 | IGN: Fuel injection system |
| 31 | 7.5 | Instrument panel gauges and indicators |
| 32 | 7.5 | ACC2: Accessory power / ignition switch |
| 33 | 7.5 | ACC2: Accessory power / ignition switch |
| Relays | ||
|
||
