Most electrical power circuits in this vehicle are protected by fuses. High-load electrical components are controlled via relays. Fuses and relays are housed in distribution boxes located in both the passenger compartment and the engine compartment.

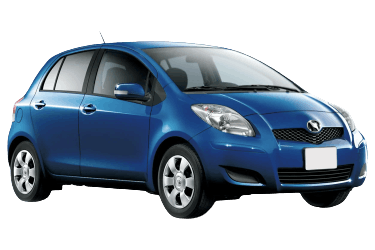

This information applies to 2005–2011 Toyota Yaris / Vitz (chassis codes KSP90, SCP90, NCP90, NCP91, NCP92, NCP93, NCP95, ZSP90, NLP90; Toyota B platform) models equipped with 1KR-FE (1.0 L), 2SZ-FE (1.3 L), or 1NZ-FE (1.5 L) gasoline engines.
Fuse Box Locations
- Engine compartment fuse box No. 1,
- Engine compartment fuse box No. 2,
- Passenger compartment fuse box,
- Engine compartment fuse box No. 3.
Diagrams
Engine compartment fuse box No. 1
Engine compartment fuse box No. 2
Engine compartment fuse box No. 3
Passenger compartment fuse box
| No. | A | Circuit Protected |
|---|---|---|
| Type “A” (Low Current) | ||
| 1 | 20 | Electronic Fuel Injection (EFI) |
| 2 | 10 | Horn |
| 3 | 15 | Starting system, fuel injection system (AM2) |
| 4 | 20 | Front windshield defogger / deicer (FR DEF) |
| 5 | 30 | Anti-lock Braking System (ABS) |
| 6 | 30 | Spare |
| 7 | 15 | |
| 8 | 10 | |
| 9 | 10 | Left headlight |
| 10 | 10 | Right headlight |
| 11 | 10 | Turn signals / hazard lights |
| 12 | 10 | Fuel injection system, Electronic Throttle Control System (ETCS) |
| 13 | 7.5 | Charging system (ALT-S) |
| 14 | 7.5 | Engine immobilizer, DRL system, SRS airbag and seat belt pretensioners, power door locks, power windows, instrument cluster |
| 15 | 15 | Dome light, map lights, audio system, keyless entry / central locking |
| 16 | 20 | - (Sedan) Not used - (Hatchback) Smart Key system (S-LOCK) |
| 17 | 30 | Starting system (ST) |
| 18 | 30 | “H-LP LH / H-LP LO LH” (H-LP MAIN) |
| 19 | 10 | Fuel injection system (EFI2) |
| 20 | 10 | Automatic transmission fluid pump (ATF PMP) |
| 21 | 10 | Heater water pump (HTR W/P) |
| 22 | 10 | Right headlight (models with DRL) |
| 23 | 10 | Left headlight (models with DRL) |
| 24 | 15 | Passenger seat heater (P S-HTR) |
| 25 | 15 | Driver seat heater (D S-HTR) |
| 26 | 20 | Windshield wipers and washer |
| 27 | 15 | - (Hatchback) Rear window wiper and washer - (Sedan) Not used |
| 28 | 15 | Windshield wipers and washer |
| 29 | 10 | DRL system, ABS, Electric Power Steering (EPS), power windows, power door locks, radiator cooling fan, instrument cluster (ECU-IG) |
| 30 | 10 | Charging system, turn signals, reverse lights, instrument cluster illumination dimmer, shift lock system, rear window defogger, air conditioning, automatic transmission control system (GAUGE) |
| 31 | 7.5 | On-Board Diagnostics (OBD2) |
| 32 | 10 | Brake lights, high-mount stop light, fuel injection system, shift lock system, ABS |
| 33 | 25 | Power door locks |
| 34 | 15 | Front fog lights |
| 35 | 10 | Tail lights, parking lights, turn signal lights, license plate lights, fuel injection system |
| 36 | 25 | Fuel injection system (AM1) |
| 37 | 10 | Tail lights, parking lights, turn signal lights, license plate lights, fuel injection system (TAIL) |
| 7.5 | Side turn signal repeaters, turn signals, parking lights, rear combination lights, license plate lights (PANEL2) | |
| 38 | 7.5 | Interior lights, instrument panel illumination, gauge cluster (PANEL1) |
| 39 | 7.5 | Rear window defogger, air conditioning |
| 40 | 20 | Power windows |
| 41 | 20 | Rear left power window |
| 42 | 20 | Rear right power window |
| 43 | 15 | Auxiliary power outlet / cigarette lighter (CIG) |
| 44 | 7.5 | Power door locks, power side mirrors, audio system |
| 45 | 10 | Fuel injection system (ID/UP/MIR HTR) |
| 46 | 7.5 | Not used (AM1) |
| 47 | 7.5 | - (Sedan) Not used - (Hatchback) Rear fog light (RR FOG) |
| 48 | 7.5 | Fuel injection system, SRS airbag system, engine immobilizer, seat belt pretensioners (IGN) |
| 49 | 7.5 | Instrument cluster |
| 50 | 7.5 | Shift lock system (ACC2) |
| Type “B” (Medium Current) | ||
| 51 | 30 | PTC heater |
| 52 | 30 | Air conditioning supplemental heater (HTR SUB1) |
| 53 | 30 | Radiator cooling fan (RDI) |
| 54 | 40 | Heater / air conditioning blower (HTR) |
| 55 | 50 | ABS, Vehicle Stability Control (VSC) |
| 56 | 50 | Electric Power Steering (EPS) system |
| 57 | 40 | Air conditioning supplemental heater (HTR SUB2) |
| 58 | 50 | - (Sedan) Not used - (Hatchback) Automated Manual Transmission control module (AMT) |
| 59 | 30 | Power windows |
| 60 | DEF | Rear window defogger |
| Type “C” (High Current) | ||
| 61 | 120 | Charging system, “HTR SUB2”, “EPS”, “ABS1 / VSC1”, “HTR”, “ABS2 / VSC2”, “HTR SUB1”, “RDI”, “DEF”, “FR FOG”, “OBD2”, “D/L”, “POWER”, “RR DOOR”, “RL DOOR”, “STOP”, “AM1” |
| 62 | 60 | “EFI”, “HORN”, “AM2”, “ALT-S”, “DOME”, “ST”, “ECU-B”, “ETCS”, “HAZ”, “H-LP LH / H-LP LO LH”, “H-LP RH / H-LP LO RH” |
