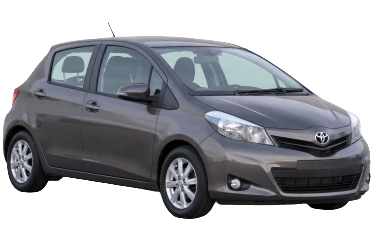

The third-generation Toyota Yaris was introduced in the United States as a 2012 model. Compared to the outgoing hatchback, the redesign features a more mature appearance and sportier stance with a sharply defined front profile, a slightly lower roofline, and an extended, wider wheelbase that improves road handling while expanding cabin space. As before, the hatchback is available in three- and five-door configurations. This generation Yaris incorporates a rigid body structure with increased high-strength steel content, an upgraded suite of safety features, and expanded standard equipment. US-spec models are powered exclusively by a 1.5-liter engine producing 106 hp.
The diagram information applies to Toyota Yaris (chassis codes KSP130, NSP130, NSP135, NCP131, NHP130, NLP130; Toyota B platform) models from 2010 through 2017 with gasoline and diesel engines.
Passenger Compartment
Component location. 1. Power distribution block, 2. Fuse block, 3. Engine and transmission control module (without Stop & Start system), 4. Stop & Start system control module, 5. Body Control Module (Body ECU), 6. Heater relay, 7. Relay block, 8. Driver assistance system control module, 9. Engine and transmission control module (with Stop & Start system), 10. Transmission Control Module (TCM, LHD), 11. Gateway control module, 12. Wiper relay, 13. Transponder key amplifier, 14. Air conditioning amplifier, 15. Junction block, 16. Airbag control module, 17. Shift lock control module, 18. Electric Power Steering (EPS) control module, 19. Certification ECU, 20. ID code box (with Smart Entry & Start system).
Fuse Box
No. 2 in illustration.
Access panel location.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Circuit | Rating (A) |
| 1 | Empty | - |
| 2 | Empty | - |
| 3 | Empty | - |
| 4 | Seat heaters | 15 |
| 5 | Empty | - |
| 6 | Empty | - |
| 7 | Power mirrors | 7.5 |
| 8 | Empty | - |
| 9 | Empty | - |
| 10 | Empty | - |
| 11 | Empty | - |
| 12 | Double locking system | 25 |
| 13 | Empty | - |
| 14 | Empty | - |
| 15 | Up to June 2013: Front fog lamps | 15 |
| From June 2013 (TMC): Front fog lamps (TMC - Toyota Motor Corporation) | 7.5 | |
| From June 2013 (TMMF): Front fog lamps (TMMF - Toyota Motor Manufacturing France) | ||
| 16 | Starting system | 7.5 |
| 17 | Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI), Vehicle Stability Control (VSC), stop lamps, high-mounted stop lamp | 7.5 |
| 18 | Rear fog lamps | 7.5 |
| 19 | Empty | - |
| 20 | Data Link Connector 3 (DLC3 / OBD) | 7.5 |
| 21 | Central door locking system, Body ECU | 25 |
| 22 | Body ECU, power mirrors, audio system, shift lock system | 5 |
| 23 | Power outlet / Cigarette lighter | 15 |
| 24 | Power windows | 20 |
| 25 | 20 | |
| 26 | 30 | |
| 27 | Rear window wiper | 15 |
| 28 | Front windshield wiper | 20 |
| 29 | Windshield washer | 15 |
| 30 | Empty | - |
| 31 | Empty | - |
| 32 | Back-up lamps, shift lock system, audio system, charging system, multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI) | 10 |
| 33 | Air conditioning system, rear window defogger, outside mirror heaters | 7.5 |
| 34 | Vehicle Stability Control (VSC) | 5 |
| 35 | Cooling fan, rear window defogger, VSC, Electric Power Steering (EPS), Body ECU, wireless remote control system, Tire Pressure Monitoring System (TPMS) | 5 |
| 36 | Power windows | 20 |
| 37 | 20 | |
| 38 | Combination meter, instrument panel illumination, headlight switch | 5 |
| 39 | Clearance lamps, license plate lamps | 10 |
Relay Box
No. 7 in illustration.
| Diagram | |
|---|---|
|
|
| R1 | Interior lamps (DOME CUT) |
| R2 | Up to July 2014: Front fog lamps (FR FOG) |
| From May 2015: Stop lamps (STP) | |
Engine Compartment
Component locations: 1. Glow plug relay, 2. Main fuse box, 3. Brake control module, 4. Auxiliary fuse box, 5. Primary power fuse box, 6. Engine Control Module (ECM)
Component layout.
Main Fuse Box
No. 2 in illustration.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Circuit | Rating (A) |
| 1 | Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI) | 7.5 |
| 2 | Gasoline: Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI) | 20 |
| Diesel: Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI) | 30 | |
| 3 | Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI) | 7.5 |
| 4 | Horn | 10 |
| 5 | Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI) | 10 |
| 6 | Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI), airbags, stop lamps, occupant detection system | 10 |
| 7 | Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI) | 15 |
| 8 | Combination meter | 7.5 |
| 9 | Empty | - |
| 10 | From July 2014 (TMMF): Auxiliary heater (PTC) (TMMF - Toyota Motor Manufacturing France) | 30 |
| 11 | Up to July 2014 (TMMF): Auxiliary heater (PTC) (TMMF - Toyota Motor Manufacturing France) | 25 |
| From July 2014 (TMMF): Auxiliary heater (PTC) (TMMF - Toyota Motor Manufacturing France) | 30 | |
| 12 | Electric Power Steering (EPS) | 50 |
| 13 | Anti-lock Braking System (ABS), Vehicle Stability Control (VSC) | 30 |
| 14 | Rear window defogger, mirror heaters | 30 |
| 15 | Air conditioning system | 40 |
| 16 | TMMF: Auxiliary heater (PTC) (TMMF - Toyota Motor Manufacturing France) | 50 |
| Headlamp cleaner (H-LP CLN) | 30 | |
| 17 | Cooling fan | 30 |
| 18 | Anti-lock Braking System (ABS), Vehicle Stability Control (VSC) | 50 |
| 19 | Mirror heaters, rear window defogger, cruise control system, shift position indicator, Engine Control Module (ECM) | 10 |
| 20 | Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI), Body ECU | 5 |
| 21 | Interior lamps, personal lamps, audio system, Vehicle Stability Control (VSC) | 15 |
| 22 | Charging system (1NR-FE engine), Stop & Start system | 40 |
| 23 | Starting system | 30 |
| 24 | TMMF: Audio system, navigation system, parking assist system (TMMF - Toyota Motor Manufacturing France) | 15 |
| 25 | Up to July 2014: Double locking system | 25 |
| Up to July 2014 (TMMF): Auxiliary heater (PTC) (TMMF - Toyota Motor Manufacturing France) | 25 | |
| 26 | Fuses: “DOME”, “ECU-B NO. 1”, “ECU-B NO. 2” | 30 |
| 27 | Up to July 2014 (TMMF): Back door, engine immobilizer, Smart Entry & Push Start system, starting system, steering lock, wireless remote control (TMMF - Toyota Motor Manufacturing France) | 20 |
| 28 | Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI) | 10 |
| 29 | Turn signal lamps, hazard warning lamps | 10 |
| 30 | Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI), starting system | 7.5 |
| 31 | Combination meter, wireless remote control, Tire Pressure Monitoring System (TPMS), occupant detection system | 5 |
| 32 | Charging system | 7.5 |
| 33 | Fuses: “EFI MAIN”, “EFI NO. 2”, “EFI NO. 3”, “IG2”, “IGN”, “MET”, “HORN” | 50 |
| 34 | Auxiliary heater (PTC), mirror heaters | 80 |
| Relays | ||
| R1 | Cooling fan No. 2 | |
| R2 | Cooling fan No. 1 | |
| R3 | Rear window defogger (DEF) | |
| R4 | Starter (ST) | |
Auxiliary Fuse Box
No. 4 in illustration.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Circuit | Rating (A) |
| 1 | Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI) | 20 |
| 2 | Daytime Running Lamps (DRL) | 7.5 |
| European Daytime Running Lamps (EU-DRL) | 15 | |
| 3 | ECD NO. 4 cooling fan, multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI) | 10 |
| S-HORN security horn, multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI) | 10 | |
| 4 | Up to July 2014: Air conditioning system, automatic light control system, headlights, headlight leveling system | 7.5 |
| From July 2014: Air conditioning system, automatic light control system, headlights, headlight leveling system | 20 | |
| 5 | Multi-Mode Manual Transmission (MMT) control module | 50 |
| 6 | H-LP RH HI Headlamp high beam (right) | 10 |
| 7 | H-LP LH HI Headlamp high beam (left), combination meter | 10 |
| 8 | H-LP RH LO Headlamp low beam (right) | 10 |
| 9 | H-LP LH LO Headlamp low beam (left), front fog lamps | 10 |
| 10-15 | Empty | - |
| Relays | ||
| R1 | Up to July 2014: Headlamp dimmer (DIM) switch | |
| From July 2014: Auxiliary heater (PTC HTR NO. 1) | ||
| R2 | Daytime Running Lamps / Security Horn (DRL / S-HORN) | |
| R3 | Headlamps (H-LP) | |
| Headlamps / Daytime Running Lamps (H-LP / US-DRL) | ||
Primary Power Fuse Box
No. 5 in illustration.
| Diagram | ||
|---|---|---|
| Gasoline Engines | ||
|
||
| 1 | Fuses: “BBC”, “ST”, “AMP”, “D/L NO. 2”, “DCC”, “STR LOCK”, “MIR-HTR”, “ETCS”, “HAZ”, “AM2”, “ALT-S”, “R/I”, “DRL”, “EU-DRL”, “S-HORN”, “H-LP MAIN”, “H-LP RH HI”, “H-LP LH HI”, “H-LP RH LO”, “H-LP LH LO” | 80 A |
| 2 | Fuses: “ID/UP”, “EPS”, “ABS NO. 2”, “DEF”, “PTC”, “HTR”, “H-LP CLN”, “RDI FAN”, “ABS NO. 1”, “TAIL NO. 2”, “PANEL”, “DOOR R/R”, “DOOR P”, “ECU-IG NO. 1”, “ECU-IG NO. 2”, “A/C”, “GAUGE”, “WASHER”, “WIPER”, “WIPER RR”, “P/W”, “DOOR R/L”, “DOOR”, “CIG”, “ACC”, “D/L”, “OBD”, “STOP”, “AM1”, “FOG FR” | 120 A |
| Diesel Engines | ||
|
||
| 1 | Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI) | 80 A |
| 2 | Fuses: “BBC”, “ST”, “AMP”, “D/L NO. 2”, “DCC”, “STR LOCK”, “MIR-HTR”, “ETCS”, “HAZ”, “AM2”, “ALT-S”, “R/I”, “DRL”, “EU-DRL”, “S-HORN”, “H-LP MAIN”, “H-LP RH HI”, “H-LP LH HI”, “H-LP RH LO”, “H-LP LH LO” | 80 A |
| 3 | Fuses: “ID/UP”, “EPS”, “ABS NO. 2”, “DEF”, “PTC”, “HTR”, “H-LP CLN”, “RDI FAN”, “ABS NO. 1”, “TAIL NO. 2”, “PANEL”, “DOOR R/R”, “DOOR P”, “ECU-IG NO. 1”, “ECU-IG NO. 2”, “A/C”, “GAUGE”, “WASHER”, “WIPER”, “WIPER RR”, “P/W”, “DOOR R/L”, “DOOR”, “CIG”, “ACC”, “D/L”, “OBD”, “STOP”, “AM1”, “FOG FR” | 120 A |
