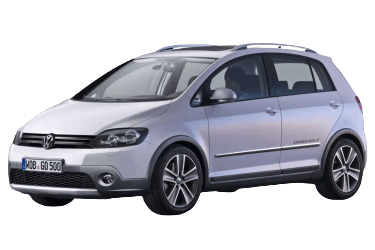

The Volkswagen Golf Plus is a subcompact MPV built on the Volkswagen Golf Mk5 platform. It was produced from 2005 through 2009. The model underwent a facelift in 2009 (often referred to as a generational shift) and was manufactured from 2010 to 2014. This facelift included minor updates to the vehicle's electrical system. This manual provides fuse box and relay panel diagrams, locations, and photo examples for the Golf Plus (chassis codes 5M, 52; A5 (PQ35) platform). The fuse for the “cigarette lighter” is highlighted in bold.
Passenger Compartment
Fuse Box
Located behind the drop-down glove compartment on the driver's side.
The main relay carrier is located directly above the fuse box. On some models, it is mounted directly to the fuse panel housing. The thermal circuit breaker for the power driver seat adjustment may also be located here: 1 – 20 A.
Two distinct fuse box configurations were used. While visually similar, they differ in total slot count (58 vs. 60 positions). The actual numbering is stamped directly onto the fuse panel housing.
Type 1
Overview.
| Diagram | |
|---|---|
|
|
| No. | Rating / Circuit Description |
| 1 | 10 A – Keyless entry and start authorization control module |
| 2 | |
| 3 | |
| 4 | |
| 5 | |
| 6 | |
| 7 | |
| 8 | |
| 9 | 5 A – Airbag control module, front passenger airbag deactivation indicator lamp |
| 10 | |
| 11 | |
| 12 | 10 A – Adaptive front-lighting system (AFS) and left headlight range control module |
| 13 | 5 A / 15 A – Park Assist control module, Climatronic control unit, heater controls and switch, fresh air blower relay, ASR/ESP OFF button and indicator lamp, tire pressure monitoring switch, reverse light switch, air quality sensor, electrochromic interior rearview mirror, Start-Stop system button |
| 14 | 10 A / 15 A – Data bus diagnostic interface (Gateway), instrument cluster control module, selector lever module, light switch, ASR/ESP OFF switch, tire pressure monitoring switch, brake light switch, multifunction switch, Tiptronic switch, fuel pump relay, electromechanical power steering control module, ABS control module, starter relay, trailer detection control module, engine control module (ECM) |
| 15 | 10 A – Headlight range control unit, mass air flow (MAF) sensor, crankcase ventilation heating element, fresh air blower relay, selector lever sensor control module, adaptive front-lighting system control module, left headlight range control motor |
| 16 | 10 A / 15 A – Adaptive front-lighting system (AFS) and right headlight range control module |
| 17 | 5 A – Instrument cluster control module |
| 18 | 10 A – Cellular telephone control module |
| 19 | |
| 20 | 10 A – Selector lever module, Climatronic control unit |
| 21 | 20 A – Onboard power supply control module, left rear door control module (central locking) |
| 22 | 10 A – Interior monitoring sensor, anti-theft alarm siren |
| 23 | 10 A – Rearview camera control module, light switch, rain and light sensor, diagnostic link connector (DLC), heated rear window relay, onboard power supply control module |
| 24 | 10 A – Driver door control module (central locking), front passenger door control module (central locking) |
| 25 | |
| 26 | 20 A – Brake system vacuum pump |
| 27 | |
| 28 | |
| 29 | 20 A – Rear window wiper motor |
| 30 | 20 A – Cigarette lighter |
| 31 | |
| 32 | |
| 33 | 40 A – Fresh air blower relay |
| 34 | |
| 35 | |
| 36 | |
| 37 | |
| 38 | |
| 39 | |
| 40 | 15 A – Trailer detection control module |
| 41 | 15 A – Trailer detection control module |
| 42 | 20 A – Trailer detection control module |
| 43 | 30 A – Inverter with power socket (12 V to 230 V) |
| 44 | 25 A – Heated rear window element, fresh air blower relay |
| 45 | 30 A – Driver door control module (power window), front passenger door control module (power window) |
| 46 | 30 A – Left rear door control module (power window), right rear door control module (power window) |
| 47 | 15 A – Fuel pump motor and fuel pump relay |
| 48 | 20 A – Onboard power supply control module |
| 49 | 40 A – Fresh air blower control module |
| 50 | 30 A – Front seat heater control module |
| 51 | 20 A – Power sunroof control module |
| 52 | 20 A – Headlight washer system relay |
| 53 | 15 A – Lumbar support height/fore-aft adjustment motor |
| 54 | 5 A – Parking distance control (PDC) module |
| 55 | |
| 56 | |
| 57 | 15 A – Infotainment head unit |
| 58 | |
| 59 | |
| 60 | |
Fuse No. 30 (rated at 20 A) protects the cigarette lighter circuit.
Type 2
Overview.
| Diagram | |
|---|---|
|
|
| Circuit / Component | Fuse No. (Rating) |
| Trailer hitch towing interface | 2 (5 A), 39 (15 A), 40 (15 A), 41 (20 A) |
| ABS control module | 14 (5 A), 18 (5 A) |
| Vehicle inclination sensor | 43 (5 A) |
| Brake lights | 13 (10 A) |
| Brake light switch | 14 (5 A) |
| Front power windows | 45 (30 A) |
| Rear power windows | 46 (30 A) |
| Fresh air blower motor | 33 (40 A) or 56 (40 A) |
| Heated rear window | 44 (25 A) |
| Rear window wiper motor | 28 (15 A) |
| Interior motion sensor (ultrasonic) | 43 (5 A) |
| Fuel pump | 47 (15 A) |
| Headlight range control | 3 (5 A) |
| Auxiliary power socket | 53 (15 A) |
| Park Assist (Parktronic) | 55 (5 A) |
| Remote control receiver | 4 (5 A) |
| Rain sensor | 42 (5 A) |
| Headlight washer system | 52 (20 A) |
| Power sunroof | 51 (25 A) |
| Seat heating system | 13 (5 A), 31 (5 A), 50 (30 A) |
| Fuel filler door release | 48 (25 A) |
| Cellular telephone interface | 10 (5 A) |
| Front door central locking switch | 24 (10 A) |
| Rear door central locking module | 48 (25 A) |
| Cigarette lighter | 49 (25 A) |
| Rear auxiliary 12V socket | 54 (20 A) |
| 230V AC socket inverter | 37 (30 A) |
Relay Carrier
The total relay configuration and slot assignment depend on the vehicle's electrical equipment specification and model year.
| Diagram | |
|---|---|
|
|
| No. | Description |
| 1 | J496 – Auxiliary coolant pump relay (449) |
| 2 | J39 – Headlight washer system relay (53) |
| 3 | J17 – Fuel pump relay (449) / J643 – Fuel supply relay (449) |
| 4 | J13 – Fresh air blower relay (404) |
| 5 | J333 – Fuel pump shut-off relay (404) |
| 6 | Unassigned |
| 7 | J485 – Auxiliary heater operation relay (449) |
| 8 | J682 – Starter power supply relay, Terminal 50 (433) / (53) from May 2006 |
| 9 | Unassigned |
- A – S44 Thermal circuit breaker 1 for power driver seat adjustment (30 A)
- J17 and J643 are mini-relays and share a single dual-slot location on the relay carrier (depending on equipment).
Engine Compartment
Located adjacent to the battery under a protective cover. The unit houses two distinct sections: standard blade fuses and high-current fusible links.
| Diagram | |
|---|---|
|
|
| No. | Rating / Circuit Description |
| 1 | Engine control module (ECM) power supply relay |
| 2 | Secondary air injection (AIR) pump relay |
| F1 | (30 A) Windshield wiper motor |
| F2 | (5 A) Steering column electronic systems control module / (30 A) Direct Shift Gearbox (DSG) mechatronic unit |
| F3 | (5 A) Onboard power supply control module |
| F4 | (30 A) ABS control module |
| F5 | (15 A) Transmission control module (TCM) |
| F6 | (5 A) Instrument cluster control module |
| F7 | (40 A) Terminal 15 power supply relay |
| F8 | (15 A) Sound system module / Infotainment head unit |
| F9 | (5 A) Cellular telephone control module |
| F10 | (5 A / 10 A) Engine control module (ECM) |
| F11 | (20 A) Auxiliary heater control module |
| F12 | (5 A) CAN data bus Gateway control module |
| F13 | (15 A / 30 A) Engine control module (ECM) |
| F14 | (20 A) Engine management system, ignition coils |
| F15 | (5 A / 10 A) Engine management system, oxygen sensor (heated) |
| F16 | (30 A) ABS control module, right headlight |
| F17 | (15 A) Horn switch / Dual-tone horn |
| F18 | (30 A) Audio system amplifier module |
| F19 | (30 A) Windshield wiper / washer system |
| F20 | (10 A) Coolant circulation pump |
| F21 | (10 A / 15 A) Engine management components, oxygen sensor, A/C compressor magnetic clutch, radiator fan control module |
| F22 | (5 A) Clutch pedal position switch |
| F23 | (5 A / 10 A / 15 A) Engine management components, fuel pressure regulator valve, secondary air pump relay |
| F24 | (10 A) Engine management components, exhaust gas recirculation (EGR) valve, EVAP canister purge solenoid valve |
| F25 | (40 A) ABS hydraulic pump control module |
| F26 | (30 A) Left headlight assembly |
| F27 | (50 A) Glow plug control module |
| F28 | (40 A) Terminal 15 main ignition switch circuits |
| F29 | (50 A) Thermal circuit breaker 1 for power seat adjustment |
| F30 | (40 A) Starter circuit / (50 A) Load reduction relay (Terminal X relief) |
| Fusible Links | |
|---|---|
|
|
| No. | Rating / Description |
| SA1 | 150 A / 200 A – Generator (Alternator) |
| SA2 | 80 A – Electromechanical power steering module |
| SA3 | 50 A – Radiator fan control module |
| SA4 | 80 A – Auxiliary high-heat element relay |
| SA5 | 80 A – Terminal 30 supply feed, interior fuse box |
| SA6 | 40 A – Auxiliary low-heat element relay |
| SA7 | 50 A – Terminal 30 supply feed, interior fuse box |
