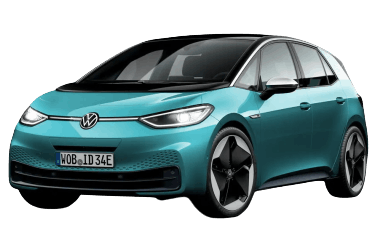

In this article, we provide a detailed overview of the fuse panel diagrams for the Volkswagen ID.3 (First Generation; Chassis codes E11, E12; MEB platform; Model Years 2019, 2020, 2021, 2022, and 2023).
Fuse F48 in the passenger compartment fuse box protects the USB socket circuit.
In the Engine Compartment
Component Location:
1. Main Fuse Box;
2. High-Current Fusible Links.
Main Fuse Box
To access the fuse box, release the retaining clips and remove the protective cover.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Unassigned | - |
| F2 | ABS system | 7.5 |
| F3 | Electric drive power and control electronics / DC/DC converter | 10 |
| F4 | Left headlight | 30 |
| F5 | Right headlight | 30 |
| F6 | Adaptive Cruise Control (ACC) | 7.5 |
| F7 | Front passenger-side windshield wiper motor | 30 |
| F8 | Unassigned | - |
| F9 | Horn | 15 |
| F10 | Driver-side windshield wiper motor | 30 |
| F11 | Air conditioning relay | 7.5 |
| F12 | Acoustic Vehicle Alerting System (AVAS) / Sound Generator Module 1 | 7.5 |
| F13 | ABS system | 25 |
| F14 | Unassigned | - |
| F15 | ABS system | 40 |
| F16 | Radiator fan | 50 |
| F17 | Heated windshield | 40 |
| F18 | Unassigned | - |
| F19 | Unassigned | - |
| F20 | Unassigned | - |
| F21 | Unassigned | - |
| F22 | Unassigned | - |
| F23 | Motor Control Unit (MCU) | 10 |
| F24 | Radiator fan | 5 |
| F25 | PTC heater / High-voltage battery coolant pump 3 | 10 |
| F26 | Radiator shutter motor, Low-temperature circuit coolant pump | 10 |
| F27 | Unassigned | - |
| F28 | Unassigned | - |
| F29 | Unassigned | - |
| F30 | Unassigned | - |
| F31 | Unassigned | - |
| F32 | Brake booster | 50 |
| R1 | Main relay | |
| R2 | Unassigned | |
| R3 | Horn relay | |
| R4 | Unassigned | |
| R5 | Unassigned | |
| R6 | Air conditioning relay | |
High-Current Fusible Links
A panel consisting of high-current fusible links is located adjacent to the positive battery terminal.
| Diagram | ||
|---|---|---|
|
||
| No. | Function | Rating (A) |
| 508 | Battery | - |
| SA1 | DC/DC converter | 350 |
| SA2 | Power steering control unit, Battery Management System (BMS) control unit | 80 |
| SA3 | Passenger compartment fuse box | 100 |
| SA4 | Fuse holder | 100 |
| SA5 | Unassigned | - |
| SA6 | Engine compartment fuse box | 125 |
In the Passenger Compartment
Fuse Box Location:
Left-Hand Drive (LHD) models.
Right-Hand Drive (RHD) models.
Shown for reference.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Unassigned | - |
| F2 | Airbag control unit -J234- | 15 |
| F3 | Trailer detection control unit -J345- | 25 |
| F4 | Driver assistance systems front camera -R242- | 7.5 |
| F5 | Body Control Module (BCM) -J519- | 20 |
| F6 | Body Control Module (BCM) -J519- | 30 |
| F7 | Air conditioning and heater control unit -J979- | 30 |
| F8 | Sliding sunroof adjustment control unit -J245- | 15 |
| F9 | Driver door control unit -J386- 1), Rear passenger-side window regulator motor -V472- 2), Rear driver-side window regulator motor -V471- 1), Front passenger door control unit -J387- 2) |
30 |
| F10 | Left rear light cluster -MX3- | 10 |
| F11 | Trailer detection control unit -J345- | 15 |
| F12 | Unassigned | - |
| F13 | Body Control Module (BCM) -J519- | 40 |
| F14 | Digital sound package control unit -J525- | 30 |
| F15 | Unassigned | - |
| F16 | Unassigned | - |
| F17 | Lane change assist control unit -J769-; Park assist control unit -J446-; Driver-side exterior mirror -VX4-:
Passenger-side exterior mirror -VX5-:
|
5 |
| F18 | Electronic steering column lock control unit -J764-, Keyless Entry and Start System interface -J965-, Immobilizer modules (-J1192-, -J1193-, -J1194-, -J1195-), Smart card reader module -J676- | 5 |
| F19 | Driver information display unit -J1254-, Emergency call module and communication unit -J949- | 5 |
| F20 | USB charging socket 1 -U41-, Mobile phone cradle -R126-, Drive mode selection control unit -R308- | 10 |
| F21 | Tailgate release button -EX37-, Rearview camera / Area View control unit -J928- | 7.5 |
| F22 | Motor Control Unit (MCU) -J623- | 10 |
| F23 | Network access / Telematics control unit -J666- | 5 |
| F24 | Right rear light cluster -MX4- | 10 |
| F25 | Front left seat belt tensioner -NX10- | 25 |
| F26 | Rear passenger-side window regulator motor -V472- 1), Rear driver-side window regulator motor -V471- 2), Front passenger door control unit -J387- 1), Driver door control unit -J386- 2) | 30 |
| F27 | Front right seat belt tensioner -NX11- | 25 |
| F28 | High-voltage manual service disconnect, Battery Management System (BMS) control unit -J840-, DC/DC converter -A19- | 10 |
| F29 | Trailer detection control unit -J345- | 15 |
| F30 | Infotainment control unit 1 -J794- | 20 |
| F31 | Trailer detection control unit -J345- | 25 |
| F32 | Body Control Module (BCM) -J519- | 25 |
| F33 | Unassigned | - |
| F34 | HVAC control unit -J979- | 15 |
| F35 | Unassigned | - |
| F36 | Fresh air blower control unit -J126- | 40 |
| F37 | Unassigned | - |
| F38 | Power seat adjustment switch | 7.5 |
| F39 | Steering column electronics control unit -J527- | 15 |
| F40 | Alarm horn -H12- | 10 |
| F41 | Data bus diagnostic interface / Gateway control unit -J533- | 5 |
| F42 | Unassigned | - |
| F43 | Cabin temperature sensor -G1090-, Heated rear window relay -J9-, Cabin carbon dioxide (CO2) sensor -G929- | 7.5 |
| F44 | Anti-theft alarm sensor -G578-, Rain and light sensor -G397-, Light switch panel -EX59-, Power window switch module -EX31-, Front center console switch panel -EX22-, OBD-II diagnostic connector -U31-, Front interior light unit -WX1-, ID. Light dynamic LED strip -L385- | 7.5 |
| F45 | Steering column electronics control unit -J527- | 5 |
| F46 | Head-up display control unit -J898-, Front infotainment display unit -J685- | 10 |
| F47 | From July 2020: Adaptive chassis control unit (DCC) -J250- | 10 |
| F48 | USB charging socket 1 -U37- | 10 |
| F49 | Unassigned | - |
| F50 | Unassigned | - |
| F51 | Unassigned | - |
| F52 | 12V auxiliary power outlet / Cigarette lighter socket -U19- | 20 |
| F53 | Unassigned | - |
| F54 | Unassigned | - |
| F55 | Unassigned | - |
| F56 | Unassigned | - |
| F57 | Unassigned | - |
| F58 | Smart card reader control unit -J676- | 7.5 |
| F59 | Auto-dimming interior rearview mirror -Y7-, Power outlet relay -J807- | 7.5 |
| F60 | OBD-II diagnostic connector -U31- | 7.5 |
| F61 | Motor power and control electronics module -JX1- | 5 |
| F62 | Unassigned | - |
| F63 | Unassigned | - |
| F64 | Unassigned | - |
| F65 | Unassigned | - |
| F66 | Rear window wiper motor -V12- | 15 |
| F67 | Heated rear window -Z1- | 30 |
| R1 | USB socket relay | |
| R2 | Terminal 15 power supply relay | |
| R3 | Heated rear window relay | |
| Note: 1) Left-Hand Drive (LHD) models; 2) Right-Hand Drive (RHD) models. |
||
Additional individual thermal circuit breakers/fuses are located adjacent to the main fuse box.
A - Driver power seat adjustment (15 A);
B - Front passenger power seat adjustment (15 A).
