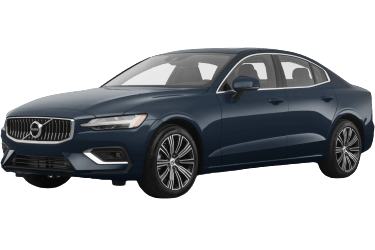

The S60 is a mid-size sport sedan produced by Swedish company Volvo since 2001. The third generation of the car went on sale in 2018. This is the first case in the history of the company, when the sedan model (considered the main model) is presented before the station wagon. In this article, we will take a detailed look at the fuse box diagrams for the Volvo S60 (3Gen) 2018, 2019, 2020, 2020, 2021, 2022, 2023, 2024 years of manufacture.
Here you will find the locations and photos of distribution boxes. The fuses responsible for the “Cigarette lighter” and “Fuel Pump” are highlighted in bold.
In the luggage compartment
The fuse box is located on the left side of the luggage compartment.
Access example.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| 1 | Not involved | - |
| 2 | Not involved | - |
| 3 | Pneumatic suspension of the compressor | 40 |
| 4 | Rear seat backrest motor lock, right side | 15 |
| 5 | Not involved | - |
| 6 | Rear seat backrest motor lock, left side | 15 |
| 7 | Power-operated front passenger seat, Door module right, rear | 20 |
| 8 | Not involved | - |
| 9 | Trunk capacity | 25 |
| 10 | Electrically operated front passenger seat, Front door module, right-hand side | 20 |
| 11 | Towbar control module | 40 |
| 12 | Seat belt tensioner module (right side) | 40 |
| 13 | Internal relay windings | 5 |
| 14 | Not involved | - |
| 15 | Foot movement detection module for opening the power line trip unit | 5 |
| 16 | USB hub / aux port | - |
| 17 | Not involved | - |
| 18 | Towbar control module | 25 |
| 18 | Auxiliary module | 40 |
| 19 | Electrically operated driver's seat | 20 |
| 20 | Seat belt tensioner module (left side) | 40 |
| 21 | Park Assist camera | 5 |
| 22 | Not involved | - |
| 23 | Not involved | - |
| 24 | Not involved | - |
| 25 | Not involved | - |
| 26 | Airbag and seatbelt tensioner control module | 5 |
| 27 | Not involved | - |
| 28 | Heated rear seat (left side) | 15 |
| 29 | Not involved | - |
| 30 | Blind Spot Information (BUS); External feedback control module | 5 |
| 31 | Not involved | - |
| 32 | Seat belt tensioner control modules | 5 |
| 33 | Emissions system drive (gasoline, some engine variants) | 5 |
| 34 | Not involved | - |
| 35 | All Wheel Drive (AWD) Module | 15 |
| 36 | Heated rear seat (right side) | 15 |
| 37 | Not involved | - |
In the engine compartment
The fuse box is located on the left side of the underhood. It can be accessed by removing the protective cover.
Access example.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| 1 | Not involved | - |
| 2 | Not involved | - |
| 3 | Not involved | - |
| 4 | Ignition coils (gasoline); spark plugs (gasoline) | 15 |
| 5 | Oil pump valve; A/C magnetic clutch; heated oxygen sensor, center (gasoline); heated oxygen sensor, rear (diesel) | 15 |
| 6 | Vacuum regulators; valve for power pulses (diesel) | 7.5 |
| 7 | Engine control module; throttle valve; Exhaust gas recirculation valve (diesel); turbocharger position sensor (diesel); turbocharger valve (gasoline) | 20 |
| 8 | Engine control module | 5 |
| 9 | Not involved | - |
| 10 | Valves (gasoline); Engine cooling thermostat (gasoline); EGR cooling pump (diesel); Glow plug control module (diesel) | 10 |
| 11 | Spoiler flap control module; Radiator flap control module; Relay windings for switching power supply (diesel) | 5 |
| 12 | Not involved | - |
| 13 | Engine control module | 20 |
| 14 | Engine start system | 40 |
| 15 | Engine start system | |
| 16 | Fuel filter heater (diesel) | 30 |
| 17 | Not involved | - |
| 18 | Not involved | - |
| 19 | Not involved | - |
| 20 | Not involved | - |
| 21 | Not involved | - |
| 22 | Not involved | - |
| 23 | Not involved | - |
| 24 | 12 V cigarette lighter socket in the front | 15 |
| 25 | 12 V cigarette lighter socket in the console between the rear seats | 15 |
| 26 | 12 V cigarette lighter socket in the luggage compartment | 15 |
| 27 | Not involved | - |
| 28 | Left headlight (models with LED lighting) | 15 |
| 29 | Headlight right (models with Led lighting) | 15 |
| 30 | Not involved | - |
| 31 | Not involved | - |
| 32 | Not involved | - |
| 33 | Headlight washers | 25 |
| 34 | Windshield washer | 25 |
| 35 | transmission control unit (TCU) | 15 |
| 36 | Horn (beep) | 20 |
| 37 | alarm siren | 5 |
| 38 | Brake control module (valves, parking brake) | 40 |
| 39 | Wiper | 30 |
| 40 | Not involved | - |
| 41 | Not involved | - |
| 42 | parking heater | 20 |
| 43 | Not involved | - |
| 44 | Not involved | - |
| 45 | Not involved | - |
| 46 | Power supply with ignition on: engine control module, transmission components, electric power steering, central electric module, brake system control module | 5 |
| 47 | Not involved | - |
| 48 | Right headlight | 7.5 |
| 48 | Headlight right (models with Led lighting) | 15 |
| 49 | Not involved | - |
| 50 | Not involved | - |
| 51 | Battery connection control module | 5 |
| 52 | Airbags | 5 |
| 53 | Left headlight | 7.5 |
| 53 | Left headlight (models with LED lighting) | 15 |
| 54 | Accelerator pedal sensor | 5 |
In the passenger compartment
It is located behind the pillar on the passenger side. The trim must be removed for access.
General view of the Volvo S60 interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Purpose | Amps |
| 1 | Not involved | - |
| 2 | Electrical outlet in the tunnel console between the rear seats | 30 |
| 3 | Not involved | - |
| 4 | Motion Sensor | 5 |
| 5 | Media player (audio system, radio) | 5 |
| 6 | Dashboard | 5 |
| 7 | Center console buttons | 5 |
| 8 | sun sensor | 5 |
| 9 | Not involved | - |
| 10 | Not involved | - |
| 11 | Steering wheel module | 5 |
| 12 | Parking brake control handle module | 5 |
| 13 | Steering wheel heating module | 125 |
| 14 | Not involved | - |
| 15 | Not involved | - |
| 16 | Not involved | - |
| 17 | Not involved | - |
| 18 | Climate control module | 10 |
| 19 | Not involved | - |
| 20 | OBD-II Data Connector | 10 |
| 21 | Central display | 5 |
| 22 | Climate fan module (front) | 40 |
| 23 | USB HUB | 5 |
| 24 | Instrument panel lighting; Interior lighting; Automatic dimming rearview mirror function; Rain and light sensors; Rear tunnel console keypad; Power front seats; Rear door control module; Climate system fan module left/right | 7.5 |
| 25 | Driver assistance function control module | 5 |
| 26 | Panoramic roof with sun visor | 20 |
| 27 | Head display | 5 |
| 28 | Interior lighting | 5 |
| 29 | Not involved | - |
| 30 | Roof console display (seat belt reminder / front passenger side airbag indicator) | 5 |
| 31 | Not involved | - |
| 32 | Not involved | - |
| 33 | Control unit in the right rear door | 20 |
| 34 | Fuses in the trunk | 10 |
| 35 | Internet-connected vehicle control module; Volvo On Call control module | 5 |
| 36 | Control unit in the left rear door | |
| 37 | Infotainment module (audio amplifier) | 40 |
| 38 | Not involved | - |
| 39 | Multi-band antenna module | 5 |
| 40 | Front seat massage function | 5 |
| 41 | Not involved | - |
| 42 | Not involved | - |
| 43 | Fuel pump control module (Volvo s60 fuel pump fuse) | 15 |
| 44 | Not involved | - |
| 45 | Not involved | - |
| 46 | Driver's seat heating | 15 |
| 47 | Front passenger seat heating | 15 |
| 48 | coolant pump | 7.5 |
| 49 | Not involved | - |
| 50 | Control unit in the left front door | 20 |
| 51 | Active chassis control module | 20 |
| 52 | Not involved | - |
| 53 | Sensus control module | 10 |
| 54 | Not involved | - |
| 55 | Not involved | - |
| 56 | Control unit in the right front door | 20 |
| 57 | Not involved | - |
| 58 | TV (only in certain markets) | 5 |
| 59 | fuse protection #52, #53, #57 and #58 | 15 |
