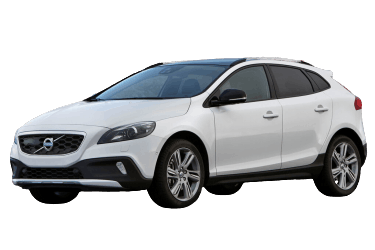

Fuses Volvo V40 (MV; 2012 - 2019)

The V40 is a five-door compact hatchback produced by Swedish automaker Volvo Cars. It was first unveiled at the 2012 Geneva Motor Show. In 2015, the V40 became the company's second best-selling model after the XC60. In this article we will understand in detail fuse box diagrams Volvo V40 (factory index MV) 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 years of manufacture.


Here you will find the locations and photos of the mounting blocks. Also, we will separately mark the fuses responsible for the cigarette lighter and the fuel pump.

In the engine compartment


The fuse box is located on the left side of the underhood. To access it, remove the protective cover by unlocking the catch.


General view.

Diagram
No. Description Amps
7 ABS pump 40
8 ABS valves 30
9 Headlight washers (availability depends on equipment) 20
10 Fan 40
11 Not involved -
12 Main fuse for fuses №32-36 30
13 Not involved -
14 Windshield heater, right side (availability depends on equipment) 40
15 Not involved -
16 Heated windshield, left side (availability depends on equipment) 40
17 Parking heater (availability depends on equipment) 20
18 Windscreen wipers 20
19 Central electronic module, reference voltage source, backup battery (Start / Stop system) 5
20 Horn (beep) 15
21 Stop lamps 5
22 Not involved -
23 Headlight control 5
24 Internal relay coils 5
25 12V cigarette lighter socket at the front of the tunnel console 15
26 transmission control module 15
27 1.6 liter, 5-cyl. Petrol: Air conditioner solenoid clutch 15
28 12V cigarette lighter socket at rear of tunnel console 15
29 Not involved -
30 4-cyl. 2.0 l, 5-cyl.: Engine control module 5
31 Power operated right seat (optional) 20
32
  • 4-cyl. 1.6 l, 5-cyl. diesel: cooling fan relay;
  • 4-cyl. 1,6 l gasoline: Lambda probe;
  • 1.6 l diesel, 5-cyl. diesel: Air flow meter,
  • 1.6 l diesel: Relief valve, EGR cooling;
  • 5-cyl. diesel: EGR valve; Fuel flow regulator valve; Fuel pressure regulator valve
10
32 4-cyl. 2.0 l.: Lambda probe, cooling fan relay 15
32 5-cyl. petrol: cooling fan relay, Lambda probe 20
32 20
33
  • Automatic transmission oil pump (5-cyl.);
  • Mass air flow sensor (1.6L gasoline, 5-cyl. gasoline);
  • EVAP valve (1.6 l gasoline);
  • Valves (4-cyl. 2.0 L, 5-cyl. Gasoline); Valves (5-cyl. Gasoline);
  • Crankcase heater (5-cyl. Gasoline);
  • Turbo motor control; Fuel regulator valve; Control module radiator roller cover (1.6 liter diesel);
  • Valve piston cooling; Turbo boost control valve; Oil level sensor (5-cyl. Diesel);
  • Air conditioning compressor (4-cyl. 2.0 L, 5-cyl. Diesel);
  • Oil pump (4-cyl. 2.0 L); Climate control cooling valve (4-cyl. 2.0 L diesel);
  • Relay coils in relay for start/stop functions
10
34
  • 1.6 l, petrol: Valves;
  • 5-cyl. gasoline: Injectors;
  • Diesel: Lambda Probe and Crankcase Heater
10
34
  • 4-cylinder 2.0 l diesel: Valve, Exhaust gas recirculation cooling pump, Glow plug control module
  • 4-cyl. 2.0 l. gasoline: EVAP valve, Crankcase heater;
  • 4-cyl. 2.0 l.: Engine Control Module, Mass Air Flow Sensor;
  • 4-cyl. 2.0 l gasoline: Thermostat
15
35 1.6 l petrol, 5-cyl. gasoline: Ignition coils 10
35
  • 4-cyl. 2.0 L gasoline: Ignition coils;
  • 1.6 l diesel, 5-cyl. diesel: Heated diesel filter;
  • 5-cyl. diesel: Glow plug control module
15
35 4-cyl. Diesel 2.0L:  Heated diesel filter 25
36 1.6L: Engine control module 10
36
  • 4-cyl. 2.0 L 5-cyl .: Engine control module;
  • 5-cyl. Gasoline: Throttle valve
15
37 ABS system 5
38 Engine Control Module; Transmission Control Module; Airbags 10
39 Headlight adjustment (optional) 10
40 Electric control of the servo drive 5
41 Central electronic module 15
42 Not involved -
43 Not involved -
44 Collision warning system 5
45 Accelerator pedal sensor 5
46 Charging point, battery backup
47 Not involved -
48 Coolant pump (if no parking heater) 10

In the passenger compartment

Here there are two units responsible for the protection of the vehicle's electrical circuits.

Fuse box #1


Placed under the front passenger seat.


General view of the Volvo V40 interior fuse box.

Diagram
No. Description Amps
1 Not involved -
2 Keyless access system (availability depends on equipment) 10
3 Door handle (without key (availability depends on equipment)) 5
4 Left front door control unit 25
5 Control unit, right front door 25
6 Left rear door control unit 25
7 Control unit, right rear door 25
8 Not involved -
9 Power seat on the left (availability depends on equipment) 20
10 Not involved -
11 Not involved -
12 Audio amplifier control unit (availability depends on configuration) 5
13 Not involved -
14 Telematics (availability depending on equipment); Bluetooth (availability depending on equipment) 5
15 Audio; Infotainment control unit 15
16 Digital radio (availability depends on configuration); TV (availability depends on configuration) 10
17 Cigarette lighter socket in trunk 15
18 Not involved -
19 Not involved -
20 Not involved -
21 Not involved -
22 Not involved -
23 Trailer socket 2 (availability depends on equipment) 20
24 Primary fuse for fuses 12-16; infotainment 40
25 Not involved -
26 Trailer socket 1 (availability depends on equipment) 40
27 Rear window heating 30
28 Not involved -
29 BLIS (availability depends on configuration) 5
30 Parking aid (availability depends on equipment) 5
31 Parking camera (availability depends on equipment) 5
32 Not involved -
33 Not involved -
34 Seat heating (driver side) 15
35 Seat heating (passenger side) 15
36 Not involved -
37 Not involved -
38 Not involved -
39 Rear right heated seat (availability depends on equipment) 15
40 Rear left heated seat (availability depends on equipment) 15
41 All-wheel drive module (availability depends on the configuration) 15
42 Not involved -
43 Not involved -
44 Not involved -
45 Not involved -
46 Not involved -

Fuse box #2


Located under the front passenger side duffel box.


General view.

Diagram
No. Description Amps
56 Fuel pump fuse Volvo V40 20
57 empty -
58 Rear window wiper 15
59 Backup position, interior lighting 5
60 Interior lighting; Power seats 10
61 Blinds, sunroof (depending on equipment) 10
62 Rain sensor (availability depends on equipment); Interior rearview mirror (availability depends on equipment); Humidity sensor (availability depends on equipment) 5
63 Collision alert system (availability depends on equipment) 5
64 empty -
65 Rear door unlock 10
66 empty -
67 Backup position #3, DC voltage 5
68 steering lock 15
69 Instrument cluster 5
70 Central locking, fuel filler flap 10
71 Climate panel 10
72 Steering wheel module 7.5
73 Siren alarm (availability depends on configuration); Diagnostic connector OBD II 5
74 high beam 15
75 empty -
76 Back-up lamp 10
77 Windshield wipers; Rear windshield wiper 20
78 Electronic anti-theft device 5
79 Backup position #1, DC voltage 15
80 Backup position #2, DC voltage 20
81 Motion sensor alarm (availability depends on equipment); Remote receiver 5
82 Windscreen wipers; Rear window wiper 20
83 Central locking, fuel tank cap 10
84 Rear door unlock 10
85 PTC element, air heater (availability depends on equipment); Rear seat heater button (availability depends on equipment) 7.5
86 Safety Airbags 10
87 Backup position 4, DC voltage 7.5
88 empty -
89 empty -
