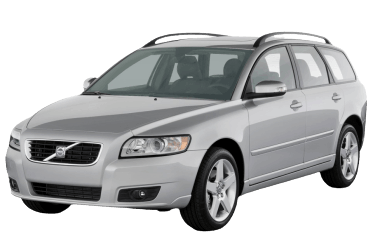

The Volvo V50 made its debut in late 2003. It is a compact station wagon based on the second-generation S40 sedan, sharing the Ford C1 platform with the Ford Focus and Mazda3. This guide provides detailed fuse box diagrams and allocation maps for first-generation Volvo V50 models (chassis code MW / 545) manufactured from 2003 to 2012.
Below you will find the locations and photographs of the power distribution centers. Fuses for the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.
Passenger Compartment
Located under the glove box on the front passenger side.
Access procedure example.
Overview of the Volvo V50 interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | A | Circuit / Protected Component |
| 37 | - | Spare |
| 38 | - | Spare |
| 39 | - | Spare |
| 40 | - | Spare |
| 41 | - | Spare |
| 42 | - | Spare |
| 43 | 15 | Telephone, audio system, Volvo Navigation System, Bluetooth (optional) |
| 44 | 10 | Supplemental Restraint System (SRS), ECM (5-cyl.) |
| 45 | 15 | Volvo V50 cigarette lighter fuse, 12V rear seat power outlet |
| 46 | 5 | Glove compartment, instrument panel, and footwell lighting |
| 47 | 5 | Interior lighting |
| 5 | 2012: HomeLink garage door opener (optional) | |
| 48 | 15 | Windshield wipers |
| 15 | Tailgate window washer | |
| 49 | 10 | SRS system / Occupant Weight Sensor (OWS) |
| 50 | - | Spare |
| 51 | 10 | Auxiliary cabin heater, All-Wheel Drive (AWD), heated fuel filter relay |
| 52 | 5 | Transmission Control Module (TCM), Anti-lock Braking System (ABS) |
| 53 | 10 | Power steering module |
| 54 | 10 | Park Assist, Bi-Xenon headlights (optional) |
| 55 | 20 | Keyless Drive Control Module |
| - | 2009–2010: Not used | |
| 56 | 10 | Remote control module, alarm siren module |
| 10 | 2011: Volvo Navigation System remote key module, alarm siren module | |
| 57 | 15 | Data Link Connector (DLC / OBD-II), brake light switch |
| 58 | 7.5 | Right high beam, auxiliary light relay |
| 59 | 7.5 | Left high beam |
| 60 | 15 | Heated driver seat (optional) |
| 61 | 15 | Heated front passenger seat (optional) |
| 62 | 20 | Power sunroof |
| 63 | 20 | Power windows and door locks – front passenger door, tailgate |
| 64 | 5 | RTI / Audio system, Sirius Satellite Radio (optional), Volvo Navigation System (optional) |
| 65 | 5 | Audio system |
| 66 | 10 | Infotainment Control Module (ICM), Climate Control Module (CCM) |
| 10 | 2009–2012: Infotainment Control Module (ICM), climate control system | |
| 67 | - | Spare |
| 68 | 5 | Cruise control |
| 69 | 5 | Climate control system, rain sensor, BLIS switch |
| 70 | - | Spare |
| 71 | - | Spare |
| 72 | - | Spare |
| 73 | 5 | Power sunroof, front overhead console lighting, auto-dimming rearview mirror (optional), seat belt reminder |
| 74 | 15 | Fuel pump control module (fuel pump fuse) |
| 75 | - | Spare |
| 76 | - | Spare |
| 77 | 15 | 12V auxiliary power outlet (cargo area), Accessory Electronic Module (AEM), cigarette lighter fuse |
| 15 | 2009–2011: Accessory Electronic Module (AEM) | |
| 78 | - | Spare |
| 79 | 5 | Reverse lights |
| 5 | 2012: Reverse lights, auto-dimming interior rearview mirror | |
| 80 | - | Spare |
| 81 | 20 | Power windows and door locks – rear driver side door |
| 82 | 25 | Power window – front passenger door |
| 83 | 25 | Power windows and door locks – front driver door |
| 84 | 25 | Power passenger seat |
| 85 | 25 | Power driver seat |
| 86 | 5 | Interior lighting, cargo compartment lighting, power seats, fuel level sensor (1.8F Flexifuel) |
| 5 | 2009–2011: Interior lighting relay, cargo area lighting, power seats | |
Engine Compartment
Located on the driver side (left side) of the engine bay, under a protective cover.
Engine compartment fuse box location.
| Diagram | ||
|---|---|---|
|
||
| No. | A | Circuit / Protected Component |
| 1 | 50 | Radiator cooling fan |
| 2 | 80 | Power steering module (except 1.6L engine) |
| 3 | 60 | Passenger compartment fuse panel (CEM) |
| 4 | 60 | Passenger compartment fuse panel (CEM) |
| 5 | 80 | Climate control blower, PTC auxiliary heater (optional) |
| 6 | 60 | Glow plugs (4-cyl. diesel) |
| 70 | Glow plugs (5-cyl. diesel) | |
| 2009–2011: Not used | ||
| 60 | 2012: Glow plugs (DRIVe diesel) | |
| 70 | 2012: Glow plugs (5-cyl. diesel) | |
| 7 | 30 | ABS / DSTC pump |
| 8 | 20 | ABS / DSTC hydraulic valves |
| 9 | 30 | Engine Control Module (ECM) |
| 10 | 40 | Cooling fan control module |
| 11 | 20 | Headlight washer system |
| 12 | 30 | Heated rear window |
| 13 | 30 | Starter motor relay |
| 14 | 40 | Trailer wiring module (optional) |
| 15 | - | Spare |
| 16 | 30 | Infotainment system |
| 17 | 30 | Windshield wipers |
| 18 | 40 | Power supply to passenger compartment fuse panel |
| 19 | - | Spare |
| 20 | 15 | Horn |
| 21 | 20 | Auxiliary fuel-operated heater, parking heater |
| 2009–2011: Not used | ||
| 22 | - | Spare |
| 23 | 10 | Engine Control Module (ECM - 5-cyl. gasoline), Transmission Control Module (TCM) |
| 24 | 20 | Heated fuel filter, oil pan PTC heater element (5-cyl. diesel) |
| 2009–2011: Not used | ||
| 25 | - | Spare |
| 10 | 2012: Central Electronic Module (CEM) (Start/Stop system) | |
| 26 | 15 | Ignition switch / Start control |
| 27 | 10 | A/C compressor clutch |
| 28 | - | Spare |
| 29 | 15 | Front fog lights |
| 15 | 2012: Daytime Running Lights (DRL) (optional) | |
| 30 | 3 | Engine Control Module (ECM) (1.6L gasoline, 2.0L diesel) |
| 2009–2011: Not used | ||
| 10 | 2012: Auxiliary coolant pump (Start/Stop system) | |
| 31 | 10 | Alternator voltage regulator (4-cylinder) |
| 2009–2011: Not used | ||
| 32 | 10 | Fuel injectors (5-cyl. gasoline), heated oxygen sensor / Lambda sensor (4-cyl. gasoline), intercooler bypass (4-cyl. diesel), Mass Air Flow (MAF) sensor & turbo boost control valve (5-cyl. diesel) |
| 10 | 2009–2011: Fuel injectors | |
| 10 | 2012: Fuel injectors (5-cyl. gasoline), turbo control valve (5-cyl. diesel), oil level sensor (5-cyl. diesel), fuel metering valve (DRIVe), Mass Air Flow (MAF) sensor (DRIVe), turbocharger control valve (DRIVe) | |
| 33 | 20 | Heated oxygen sensor (Lambda) and brake vacuum pump (5-cyl. gasoline), Engine Control Module (ECM) (5-cyl. diesel), heated fuel filter (4-cyl. diesel) |
| 20 | 2009–2011: Heated oxygen sensor (Lambda), brake vacuum pump | |
| 20 | 2012: Vacuum pump (5-cyl. gasoline), Engine Control Module (ECM) (5-cyl. diesel), heated fuel filter (DRIVe) | |
| 34 | 10 | Ignition coils (gasoline), fuel injectors (1.6L gasoline), fuel pump (4-cyl. diesel), A/C pressure switch (5-cyl.), glow plugs and EGR valve (5-cyl. diesel) |
| 10 | 2009–2011: Ignition coils, climate control pressure sensor | |
| 10 | 2012: Ignition coils (gasoline), A/C pressure sensor (5-cyl.), glow plugs (5-cyl. diesel), EGR system (5-cyl. diesel), fuel pump (DRIVe), Lambda sensor (DRIVe), Engine Control Module (Start/Stop), relay coils | |
| 35 | 15 | Engine solenoid valves, A/C compressor relay, oil trap heater (5-cyl. gasoline), Engine Control Module (ECM) (5-cyl. diesel), EVAP canister purge valve (gasoline), fuel injectors (1.8L / 2.0L gasoline), Mass Air Flow (MAF) sensor (5-cyl. gasoline, 4-cyl. diesel), turbo wastegate regulator (4-cyl. diesel), power steering pressure switch (1.6L gasoline), EGR system (4-cyl. diesel) |
| 15 | 2009–2011: Engine solenoid valves, A/C relay, relay coils, oil pan PTC heater, EVAP purge valve, Mass Air Flow (MAF) sensor | |
| 15 | 2012: Climate control system, PTC oil trap element (5-cyl. gasoline), Mass Air Flow (MAF) sensor (5-cyl. gasoline), turbocharger control valve (5-cyl. gasoline), variable valve timing (VVT) solenoid (5-cyl. gasoline), fuel injectors (2.0L gasoline), EVAP purge valve (2.0L gasoline), air/fuel mixture valve (2.0L gasoline), fuel pressure control valve (5-cyl. diesel), Engine Control Module (ECM) (5-cyl. diesel), EGR system (DRIVe) | |
| 36 | 10 | Engine Control Module (ECM) (except 5-cyl. diesel), accelerator pedal position sensor, Lambda sensor (5-cyl. diesel) |
| 10 | 2012: Engine Control Module (ECM) (gasoline, DRIVe), accelerator pedal position sensor (5-cyl. diesel), Lambda sensor (5-cyl. diesel) | |
Vehicles equipped with the Start/Stop system feature an auxiliary fuse box in the engine compartment. Mounted on the side of the battery tray, it contains high-current fusible links:
- 11M/1 – Power distribution box (125 A);
- 11M/2 – Battery Monitoring Sensor (BMS) (15 A).
