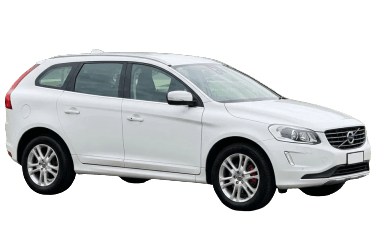

Built on the shared platform with the Ford Mondeo and Land Rover Freelander, Volvo's mid-size SUV debuted in 2008 as the pioneer of the refreshed “60” series, followed by the S60 and V60 in 2010. This article provides detailed fuse box diagrams and relay assignments for the first-generation Volvo XC60 (chassis code DZ; P3 platform) for model years 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, and 2017.
Here you will find the locations, diagrams, and photos of power distribution boxes. Fuses responsible for key circuits such as the “Cigarette lighter” and “Fuel pump” are highlighted in bold.
In the Passenger Compartment
The interior fuse box is located beneath the glove compartment. Its layout depends on the vehicle's model year: 2010–2017 models feature a dual-panel setup, whereas 2008–2010 models utilize a single panel.
2011–2017 Models
Example of accessing Panel A.
| Diagram | ||
|---|---|---|
| Panel "A" | ||
|
||
| No. | A | Description |
| 1 | 40 | Audio Control Module (ACM) main fuse*; primary fuse for fuses 16–20; Infotainment system |
| 2 | 25 | 2014–2017: Windshield washers; rear window washer |
| 3 | - | Spare |
| 4 | - | Spare |
| 5 | - | Spare |
| 6 | - | Spare |
| 7 | 15 | 12V power socket in cargo area |
| 8 | 20 | Driver's door control panel |
| 9 | 20 | Front passenger door control panel |
| 10 | 20 | Rear right door control panel |
| 11 | 20 | Rear left door control panel |
| 12 | 20 | Keyless entry system |
| 13 | 20 | Power driver's seat |
| 14 | 20 | Power passenger seat |
| 15 | 15 | 2011–2012: Power folding head restraints |
| 2013–2017: Spare | ||
| 16 | 5 | 2011: Spare |
| 2012–2017: Infotainment Control Module (ICM) / display monitor | ||
| 17 | 10 | Audio control module (amplifiers); TV tuner; digital radio |
| 18 | 15 | Audio control module / Sensus control module |
| 19 | 5 | Telematics module; Bluetooth |
| 20 | - | Spare |
| 21 | 5 | Panoramic sunroof with sunshade; interior overhead lighting; climate control sensor |
| 22 | 15 | 2011: Volvo XC60 cigarette lighter fuse, Rear Seat Entertainment (RSE) |
| 2012–2017: 12V power socket in tunnel console | ||
| 23 | 15 | 2011: Heated front passenger seat |
| 2012–2017: Heated rear right seat | ||
| 24 | 15 | 2011: Heated driver's seat |
| 2012–2017: Heated rear left seat | ||
| 25 | - | Spare |
| 26 | 15 | 2011: Heated rear right seat |
| 2012–2017: Heated front passenger seat | ||
| 27 | 15 | 2011: Heated rear left seat |
| 2012–2017: Heated driver's seat | ||
| 28 | 5 | Park Assist; Park Assist camera; BLIS; RTI navigation |
| 29 | 10 | 2011–2012: AWD control module |
| 15 | 2013–2017: AWD control module | |
| 30 | 10 | Four-C active chassis control module |
| Panel "B" | ||
|
||
| No. | A | Description |
| 1 | 15 | Rear window wiper |
| 2 | - | Spare |
| 3 | 7.5 | Interior lighting; driver's door power window switches; power seats |
| 4 | 5 | Combined instrument panel |
| 5 | 10 | Adaptive Cruise Control (ACC)*; collision warning system |
| 6 | 7.5 | Interior lighting; rain sensor |
| 7 | 7.5 | Steering Wheel Module (SWM) |
| 8 | 10 | Central locking system; fuel filler flap switch |
| 9 | 15 | 2011–2013: Rear window washer |
| 2014–2017: Heated steering wheel | ||
| 10 | 15 | 2011–2013: Windshield washer |
| 2014–2017: Heated windshield | ||
| 11 | 10 | Tailgate release switch |
| 12 | 10 | 2011: Tailgate lock |
| 2012: Spare | ||
| 2013–2017: Power folding head restraints | ||
| 13 | 20 | Fuel pump fuse |
| 14 | 5 | Anti-theft alarm motion sensor; climate control panel |
| 15 | 15 | Electronic steering column lock |
| 16 | 5 | Anti-theft alarm siren; OBD-II diagnostic socket |
| 17 | - | Spare |
| 18 | 10 | City Safety system; Supplemental Restraint System (SRS) |
| 19 | 5 | Collision warning system sensor |
| 20 | 7.5 | Accelerator pedal position sensor; auto-dimming interior rearview mirror; heated rear seat; auxiliary electric cabin heater |
| 21 | 15 | Infotainment Control Module (Performance); audio system (Performance) |
| 22 | 5 | Brake light switch |
| 23 | 20 | Panoramic sunroof with sunshade |
| 24 | 5 | Starter interlock / Engine immobilizer |
2008–2010 Models
Diagram:
|
||
| No. | A | Description |
| 1 | 5 | Rain sensor |
| 2 | 10 | Supplemental Restraint System (SRS) |
| 3 | 5 | Anti-lock Braking System (ABS) |
| 4 | 7.5 | Accelerator pedal sensor; auxiliary cabin air heater (PTC); heated seats |
| 5 | - | Spare |
| 6 | 15 | ICM display, radio/CD player, Rear Seat Entertainment (RSE) |
| 7 | 7.5 | Steering Wheel Module (SWM) |
| 8 | - | Spare |
| 9 | 15 | High beam headlights |
| 10 | 20 | Power sunroof |
| 11 | 7.5 | Reversing lights |
| 12 | - | Spare |
| 13 | 15 | Front fog lights |
| 14 | 15 | Windshield washer system |
| 15 | 10 | Adaptive Cruise Control (ACC) |
| 16 | - | Spare |
| 17 | 7.5 | Overhead interior lighting; driver's door switch panel; power passenger seat |
| 18 | 5 | Information display screen |
| 19 | 5 | Power driver's seat |
| 20 | 15 | Rear window wiper |
| 21 | 5 | Remote key receiver; anti-theft alarm sensors |
| 22 | 20 | Fuel pump fuse (Volvo XC60) |
| 23 | 20 | Electronic steering column lock |
| 24 | - | Spare |
| 25 | 10 | Fuel filler flap lock / Tailgate lock |
| 26 | 5 | Anti-theft alarm siren; Electronic Climate Control (ECC) |
| 27 | 5 | Engine Start/Stop button |
| 28 | 5 | Brake light switch |
In the Engine Compartment
There are two power distribution boxes located in the engine compartment that protect electrical circuits.
Main Fuse Box
It is located on the left side (driver's side) behind the protective cover and consists of three distinct sections.
Overview of the engine compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | A | Description |
| R1 | - | Starter relay |
| R2 | - | Engine Control Module (ECM) main relay |
| R3 | - | A/C compressor solenoid clutch relay |
| R4 | - | Fuel filter heater relay |
| 1 | 50 | Primary fuse for Central Electronic Module (CEM) and Fuse Box B under glove compartment |
| 2 | 50 | Primary fuse for Central Electronic Module (CEM) and Fuse Box B under glove compartment |
| 3 | 60 | Primary fuse for luggage compartment fuse box |
| 4 | 60 | Primary fuse for passenger compartment Fuse Box A under glove compartment |
| 5 | 50 1) | Primary fuse for passenger compartment Fuse Box A under glove compartment |
| 60 | ||
| 6 | - | Spare |
| 7 | 100 | PTC auxiliary air heater |
| 8 | 20 | 2008–2011: Spare |
| 2012–2013: Headlight washer pump | ||
| 40 | 2014–2017: Heated windshield, left side | |
| 9 | 30 | Windshield wiper motor |
| 10 | 25 | Auxiliary fuel-operated parking heater |
| 11 | 40 | Climate control blower fan |
| 12 | 40 | 2008–2013: Spare |
| 2014–2017: Heated windshield, left side | ||
| 13 | 40 | ABS/ESC pump motor |
| 14 | 20 | ABS/ESC control valves |
| 15 | 20 | 2008–2013: Spare |
| 2014–2017: Headlight washer system | ||
| 16 | 10 | Headlight leveling control; Active Bending Lights (ABL / Xenon) |
| 17 | 20 | Primary fuse for Central Electronic Module (CEM) and Fuse Box B under glove compartment |
| 18 | 5 | 2008–2010: Radar sensor; Adaptive Cruise Control (ACC) module |
| 2011–2017: ABS/ESC module | ||
| 19 | 5 | Speed-sensitive power steering |
| 20 | 10 | Engine Control Module (ECM); Transmission Control Module (TCM); SRS airbags |
| 21 | 10 | Heated windshield washer nozzles |
| 22 | - | Spare |
| 23 | 5 | Headlight switch panel |
| 24 | 15 | 2008–2010: Headlight washer system |
| 2011–2017: Spare | ||
| 25 | 15 | 2008–2010: Front and rear console 12V electrical sockets (cigarette lighter) |
| 2011–2017: Spare | ||
| 26 | 5 | 2008–2010: Power sunroof; roof console / ECC |
| 2011–2017: Spare | ||
| 27 | 5 | 2008–2013: Relay coils in engine compartment box |
| 2014–2017: Washer pump relay | ||
| 28 | 20 | Auxiliary driving lights |
| 29 | 15 | Horn |
| 30 | 10 | Engine Control Module (ECM); relay coil in ECM main relay |
| 5 2) | ||
| 31 | 15 | Transmission Control Module (TCM) |
| 32 | 15 | A/C solenoid clutch (except 5-cyl. diesel and 4-cyl. diesel B4207T7) |
| Auxiliary coolant pump (5-cyl. diesel Start/Stop and B4207T7) | ||
| 33 | 5 | 2008–2011: Washer pump relay |
| 2012–2017: A/C magnetic clutch relay (except 5-cyl. diesels); coolant pump relay (1.6L gasoline, 5-cyl. diesel Start/Stop); relay coils in engine compartment cooling box (Start/Stop) | ||
| 34 | 30 | 2008–2016: Starter relay |
| 2017: Spare | ||
| 35 | 20 | Ignition coils (5- and 6-cyl. gasoline); capacitor (6-cyl.); Engine Control Module (4-cyl. 2.0L) |
| 10 | Ignition coils (4-cyl. gasoline); glow plug control module (5-cyl. diesel) | |
| 36 | 10 | 2008–2013: Engine Control Module (gasoline except 4-cyl. 2.0L) |
| 15 | 2008–2013: Engine Control Module (diesel) | |
| 20 | 2014–2017: Engine Control Module (4-cyl. engines) | |
| 37 | 10 | Mass Air Flow (MAF) sensor (4-cyl.); thermostat (4-cyl. gasoline); EVAP valve (4-cyl. gasoline); EGR coolant pump (4-cyl. diesel) |
| 15 | Mass Air Flow (MAF) sensor (5-cyl. diesel & 6-cyl.); control valves (5-cyl. diesel); fuel injectors (5- & 6-cyl. gasoline); Engine Control Module (5- & 6-cyl. gasoline) | |
| 38 | 15 | Control valves; variable oil pump (4-cyl. gasoline); center oxygen sensor (4-cyl. gasoline); rear oxygen sensor (4-cyl. diesel) |
| 10 | A/C magnetic clutch (5- & 6-cyl.); control valves (5- & 6-cyl.); Engine Control Module (6-cyl.); Mass Air Flow (MAF) sensor (5-cyl. gasoline); engine oil level sensor | |
| 39 | 15 | EVAP valve; heated oxygen sensors; fuel injection system; active radiator shutter control module |
| 10 | Heated oxygen sensors; active radiator shutter control module | |
| 40 | 20 | Electric vacuum pump; crankcase ventilation heater (5-cyl. turbo, 2.0L GTDI) |
| 2008–2009: Fuel filter heater | ||
| 15 | 2008–2009: Fuel filter heater; crankcase ventilation heater (diesel) | |
| 2014–2017: Ignition coils | ||
| 10 | 2010–2013: Crankcase ventilation heater (5-cyl. gasoline) | |
| 20 | 2010–2013: Fuel filter heater; crankcase ventilation heater (5-cyl. diesel) | |
| 41 | 5 | 2008–2010: Spare |
| 2011–2012: Crankcase ventilation heater (diesel) | ||
| 2013–2017: Active radiator shutter control module (5-cyl. gasoline) | ||
| 10 | 2012–2017: Crankcase ventilation heater (5-cyl. diesel); automatic transmission auxiliary oil pump (5-cyl. diesel Start/Stop from 2013) | |
| 15 | 2014–2017: A/C solenoid clutch (4-cyl. 2.0L); glow plug control module (4-cyl. 2.0L diesel); oil pump solenoid (4-cyl. 2.0L diesel) | |
| 42 | 70 | Glow plugs (diesel) |
| 50 | 2014–2017: Electric coolant pump (4-cyl. 2.0L gasoline) | |
| 43 | 60 | 2011–2017: Engine cooling fan (4- and 5-cyl. gasoline) |
| 80 | 2011–2017: Engine cooling fan (6-cyl. gasoline; 4-cyl. 2.0L and 5-cyl. diesel) | |
| 44 | 80 | 2008–2010: Engine cooling fan |
| 2011–2017: Electro-hydraulic power steering module (1.6D) | ||
| 100 | 2011–2017: Power steering control module | |
| 1) Up to 2010 2) 4-cylinder engines since 2016 |
||
Auxiliary Fuse Box
From model year 2011 onwards, Volvo XC60 models equipped with the Start/Stop system feature an auxiliary fuse box in the engine compartment.
| Diagram | ||
|---|---|---|
|
||
| No. | A | Description |
| 1 | 100 | Auxiliary electric cabin heater |
| 2 | 50 | Primary fuse for Central Electronic Module (CEM) and Fuse Box B under glove compartment |
| 3 | 60 | Primary fuse for passenger compartment Fuse Box A under glove compartment |
| 4 | 60 | Primary fuse for passenger compartment Fuse Box A under glove compartment |
| 5 | 60 | Primary fuse for luggage compartment fuse box |
| 6 | 40 | Climate control blower fan |
| 7 | - | Spare |
| 8 | - | Spare |
| 9 | 30 | Starter motor relay |
| 10 | 50 | Internal isolation diode |
| 11 | 70 | Auxiliary battery system |
| 12 | 15 | Central Electronic Module (CEM) (auxiliary battery reference voltage) |
| 5 | 2016–2017: Central Electronic Module (CEM) (auxiliary battery reference voltage) | |
| A1 | 175 | High-current fusible link for engine compartment power distribution box |
| A2 | 175 | Fusible link for Central Electronic Module (CEM) Fuse Box B, passenger compartment Fuse Box A under glove compartment, and luggage compartment fuse box. |
In the Luggage Compartment
Located behind the trim panel on the left side of the luggage compartment.
For models produced up to 2010, it consists of three separate color-coded panels (Black, White, Blue).
From 2011 onwards, a single panel (black) is used.
| Volvo XC60 Luggage Compartment Fuse Diagram | ||
|---|---|---|
| 2008–2017: Panel #1 (black) | ||
|
||
| No. | A | Description |
| 1 | 25 | 2008–2010: Driver's door control module |
| 30 | 2011–2017: Electric parking brake (left) | |
| 2 | 25 | 2008–2010: Front passenger door control panel |
| 30 | 2011–2017: Electric parking brake (right) | |
| 3 | 25 | 2008–2010: Rear left door control panel |
| 30 | 2011–2017: Heated rear window | |
| 4 | 25 | 2008–2010: Rear right door control panel |
| 15 | 2011–2017: Trailer connector socket 2 | |
| 5 | 20 | 2008–2010: Spare |
| 2011–2017: Power Operated Tailgate (POT) module | ||
| 6 | 15 | 2008–2010: 12V power socket in luggage compartment |
| 2011–2017: Spare | ||
| 7 | 30 | 2008–2010: Heated rear window |
| 2011–2017: Spare | ||
| 8 | - | Spare |
| 9 | 15 | 2008–2010: Trailer connector socket 2 |
| 2011–2017: Spare | ||
| 10 | 25 | 2008–2010: Power driver seat |
| 2011–2017: Spare | ||
| 11 | 40 | Trailer connector socket 1 |
| 12 | 30 | 2008–2010: Remote Operated Tailgate (ROT) module |
| 2011–2017: Spare | ||
| 2008–2010: Panel #2 (white) | ||
|
||
| No. | A | Description |
| 1 | 5 | Park Assist; Park Assist camera |
| 2 | 15 | Four-C active chassis module |
| 3 | 15 | Heated front driver seat |
| 4 | 15 | Heated front passenger seat |
| 5 | 15 | Heated rear right seat |
| 6 | 10 | AWD control module |
| 7 | 15 | Heated rear left seat |
| 8 | - | Spare |
| 9 | 25 | Power passenger seat |
| 10 | 20 | Keyless Drive system |
| 11 | 30 | Electric parking brake (left) |
| 12 | 30 | Electric parking brake (right) |
| 2008–2010: Panel #3 (blue) | ||
|
||
| No. | A | Description |
| 1 | 10 | RTI navigation display |
| 2 | - | Spare |
| 3 | 25 | Subwoofer / Bass speakers |
| 4 | 5 | DAB digital radio |
| 5 | 25 | Audio system amplifier |
| 6 | 15 | Audio control module |
| 7 | 5 | Phone module; Bluetooth |
| 8 | - | Spare |
| 9 | - | Spare |
| 10 | - | Spare |
| 11 | - | Spare |
| 12 | - | Spare |
