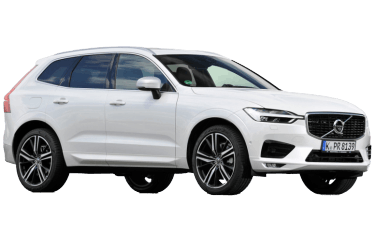

The Volvo XC60 is a compact luxury crossover SUV produced by Volvo Cars. The second-generation model debuted in March 2017 at the Geneva International Motor Show. Built on Volvo’s Scalable Product Architecture (SPA) platform (chassis code UZ), this guide provides a detailed look at the fuse box diagrams for the 2017, 2018, 2019, 2020, 2021, 2022, 2023, and 2024 model years.
Here you will find the locations and photos of the power distribution boxes. The fuses responsible for the “Cigarette lighter” and “Fuel pump” are highlighted in bold.
Luggage compartment
The fuse box is located on the right-hand side of the cargo area. It can be accessed by removing the floor trim panel.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| 1 | Heated rear window | 30 |
| 2 | Not in use | - |
| 3 | Air suspension compressor | 40 |
| 4 | Rear right seatback folding motor | 15 |
| 5 | Not in use | - |
| 6 | Rear left seatback folding motor | 15 |
| 7 | Not in use | - |
| 8 | NOx emission control module (diesel) | 30 |
| 9 | Power tailgate control module | 25 |
| 10 | Power front passenger seat | 20 |
| 11 | Towbar control module | 20 |
| 12 | Right front seatbelt tensioner module | 40 |
| 13 | Internal relay coils | 5 |
| 14 | NOx emission control module (diesel) | 15 |
| 15 | Hands-free tailgate sensor (foot movement detector) | 5 |
| 16 | Alcohol interlock, USB hub, accessory port | 5 |
| 17 | Not in use | - |
| 18 | Towbar control module | 25 |
| 19 | Power driver seat | 20 |
| 20 | Left front seatbelt tensioner module | 40 |
| 21 | Park assist camera | 5 |
| 22 | Not in use | - |
| 23 | Not in use | - |
| 24 | Not in use | - |
| 25 | Not in use | - |
| 26 | Supplemental Restraint System (SRS) and seatbelt tensioner control module | 5 |
| 27 | Not in use | - |
| 28 | Rear left heated seat | 15 |
| 29 | Not in use | - |
| 30 | Blind Spot Information System (BLIS); Reverse warning acoustic module | 5 |
| 31 | Not in use | - |
| 32 | Seatbelt tensioner modules | 5 |
| 33 | Exhaust flap actuator (gasoline, select engines) | 5 |
| 34 | Not in use | - |
| 35 | All-Wheel Drive (AWD) control module | 15 |
| 36 | Rear right heated seat | 15 |
| 37 | Not in use | - |
Engine compartment
The engine compartment fuse box is located on the left-hand side. Unclip and remove the protective cover to gain access.
General overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| 1 | Not in use | - |
| 2 | Not in use | - |
| 3 | Not in use | - |
| 4 | Ignition coils; Spark plugs (gasoline) | 15 |
| 5 | Engine oil pump solenoid valve; A/C compressor clutch; Mid lambda sensor (gasoline); Rear lambda sensor (diesel) | 15 |
| 6 | Vacuum regulators; Solenoid valves (diesel) | 7.5 |
| 7 | Engine Control Module (ECM); Fuel control module; EGR valve (diesel); Turbo position sensor (diesel); Turbocharger control valve (gasoline) | 20 |
| 8 | Engine Control Module (ECM) | 5 |
| 9 | Not in use | - |
| 10 | Solenoid valves (gasoline); Engine cooling thermostat (gasoline); EGR cooler pump (diesel); Glow plug control module (diesel) | 10 |
| 11 | Active grille shutter module; Active spoiler shutter module; Relay coils (diesel) | 5 |
| 12 | Front lambda sensor; Rear lambda sensor (gasoline) | 15 |
| 13 | Engine Control Module (ECM) | 20 |
| 14 | Starter motor | 40 |
| 15 | Starter motor | - |
| 16 | Fuel filter heater (diesel) | 30 |
| 17 | Not in use | - |
| 18 | Not in use | - |
| 19 | Not in use | - |
| 20 | Not in use | - |
| 21 | Not in use | - |
| 22 | Not in use | - |
| 23 | Not in use | - |
| 24 | 12V power socket / “Cigarette lighter” in the front tunnel console | 15 |
| 25 | 12V power socket / “Cigarette lighter” in the rear tunnel console footwell | 15 |
| 26 | 12V power socket / “Cigarette lighter” in the luggage compartment | 15 |
| 27 | Not in use | - |
| 28 | Left headlamp (LED, select variants) | 15 |
| 29 | Right headlamp (LED, select variants) | 15 |
| 30 | Not in use | - |
| 31 | Heated windshield, left side | |
| 32 | Heated windshield, left side | 40 |
| 33 | Headlamp washers | 25 |
| 34 | Windshield washers | 25 |
| 35 | Transmission Control Module (TCM) | 15 |
| 36 | Horn | 20 |
| 37 | Alarm siren | 5 |
| 38 | Brake System Control Module (valves, electric parking brake) | 40 |
| 39 | Windshield wipers | 30 |
| 40 | Rear window washer | 25 |
| 41 | Heated windshield, right side | 40 |
| 42 | Auxiliary / Parking heater | 20 |
| 43 | Brake Control Module (ABS pump) | 40 |
| 44 | Not in use | - |
| 45 | Heated windshield, right side | |
| 46 | Ignition-switched power feed: Engine Control Module (ECM); Transmission components; Power steering unit; Central Electronic Module (CEM); Brake Control Module | 5 |
| 47 | Not in use | - |
| 48 | Right headlamp | 7.5 |
| Right headlamp (LED, select variants) | 15 | |
| 49 | Alcohol interlock / Breathalyzer | 5 |
| 50 | Not in use | - |
| 51 | Battery Monitoring System (BMS) module | 5 |
| 52 | Supplemental Restraint System (SRS Airbags) | 5 |
| 53 | Left headlamp | 7.5 |
| Left headlamp (LED, select variants) | 15 | |
| 54 | Accelerator pedal position sensor | 5 |
Passenger compartment
The interior fuse box is located on the passenger side beneath the glove compartment. Access the panel by unclipping the lower dashboard trim panel.
General view of the passenger compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| 1 | Not in use | - |
| 2 | 12V power socket / “Cigarette lighter” in the rear passenger footwell | 30 |
| 3 | Not in use | - |
| 4 | Interior motion sensor | 5 |
| 5 | Media player / Infotainment system | 5 |
| 6 | Driver Display (Instrument cluster) | 5 |
| 7 | Center console switch panel | 5 |
| 8 | Solar sensor | 5 |
| 9 | Not in use | - |
| 10 | Not in use | - |
| 11 | Steering wheel module | 5 |
| 12 | Start module and Electric Parking Brake (EPB) switch | 5 |
| 13 | Heated steering wheel module | 15 |
| 14 | Not in use | - |
| 15 | Not in use | - |
| 16 | Not in use | - |
| 17 | Not in use | - |
| 18 | Climate Control Module (CCM) | 10 |
| 19 | Steering column lock | 7.5 |
| 20 | OBD-II diagnostic port | 10 |
| 21 | Center display (Sensus) | 5 |
| 22 | Climate control front blower motor | 40 |
| 23 | USB hub | 5 |
| 24 | Control illumination; Interior lighting; Auto-dimming interior rearview mirror; Rain and light sensor; Rear tunnel console switch panel; Power front seats; Rear door control panels; Climate control fan module (left/right) | 7.5 |
| 25 | Advanced Driver Assistance Systems (ADAS) control module | 5 |
| 26 | Panoramic sunroof and sunblind | 20 |
| 27 | Head-Up Display (HUD) | 5 |
| 28 | Interior lighting | 5 |
| 29 | Not in use | - |
| 30 | Overhead console display (seatbelt reminder / front passenger airbag indicator) | 5 |
| 31 | Not in use | - |
| 32 | Humidity sensor | 5 |
| 33 | Rear right door control module | 20 |
| 34 | Luggage compartment fuse box power feed | 10 |
| 35 | Telematics control module (Volvo On Call / Internet connectivity) | 5 |
| 36 | Rear left door control module | 20 |
| 37 | Audio system amplifier (select models) | 40 |
| 38 | Not in use | - |
| 39 | Multiband antenna module | 5 |
| 40 | Front seat massage function module | 5 |
| 41 | Alcohol interlock / Breathalyzer | 5 |
| 42 | Rear window wiper | 15 |
| 43 | Volvo XC60 fuel pump | 15 |
| 44 | Not in use | - |
| 45 | Not in use | - |
| 46 | Heated driver seat | 15 |
| 47 | Heated front passenger seat | 15 |
| 48 | Coolant pump | 10 |
| 49 | Not in use | - |
| 50 | Front left door control module | 20 |
| 51 | Active chassis control module (suspension) | 20 |
| 52 | Not in use | - |
| 53 | Sensus infotainment module | 10 |
| 54 | Not in use | - |
| 55 | Not in use | - |
| 56 | Front right door control module | 20 |
| 57 | Not in use | - |
| 58 | Digital TV tuner (optional) | 5 |
| 59 | Power supply for fuses #53 and #58 | 15 |
