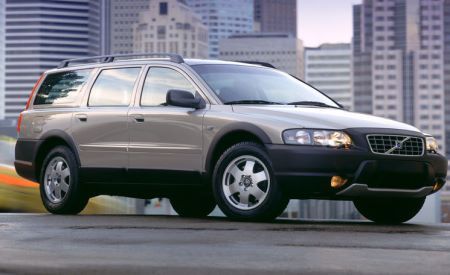

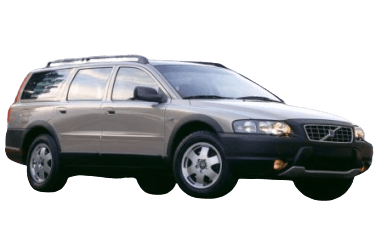

The second generation of the Volvo V70 wagon was launched in 2000. Development began prior to Ford’s acquisition of the Swedish automaker, making this model widely considered one of the last “true” Volvos. The XC70 is a rugged, all-wheel-drive variant with increased ground clearance.
Below are the detailed fuse and relay box diagrams for the Volvo V70 and XC70 (2nd Generation; chassis codes 285 / 295; P2 platform) covering model years 2000 through 2007. Key fuses such as the Cigarette Lighter / 12V Outlet and Fuel Pump are highlighted for quick reference.
In the Passenger Compartment
Located on the driver’s side at the end edge of the dashboard.
Fuse panel access.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F1 | 2003–2007: Engine compartment fuse box (F17–F18 / F10–F11) | 15 |
| F2 | Engine compartment fuse box (F20–F21) | 20 |
| F3 | Power Seat Control Module – Left | 30 |
| F4 | Power Seat Control Module – Right | 30 |
| F5 | Spare | - |
| F6 | Engine Control Module (ECM) – Bi-Fuel system | 5 |
| F7 | Heated Seat – Front Left | 15 |
| F8 | Heated Seat – Front Right | 15 |
| F9 | Anti-lock Braking System (ABS), Steering Angle Sensor (SAS) module | 5 |
| F10 | Spare | - |
| F11 | Spare | - |
| F12 | Headlamp washer/wiper system, headlamp levelling control | 15 |
| F13 | Cigarette lighter / 12V socket (Volvo XC70 / V70), auxiliary power connectors | 15 |
| F14 | Power seat control module – right, Central Electronic Module (CEM), seat belt reminder switch | 5 |
| F15 | Audio system, RTI navigation system | 5 |
| F16 | Audio system | 20 |
| F17 | Audio power amplifier | 30 |
| F18 | Front fog lamps | 15 |
| F19 | RTI navigation system | 10 |
| F20 | Spare | - |
| F21 | Transmission Control Module (TCM) | 10 |
| F22 | Hazard flashers, turn signals, Central Electronic Module (CEM) | 20 |
| F23 | Climate Control Module (CCM), light switch module, OBD-II diagnostic port, steering wheel module | 5 |
| F24 | Climate Control Module (CCM), auxiliary heater, power seat module (left), Driver Information Module (DIM) | 10 |
| F25 | Ignition switch, Climate Control Module (CCM), Central Electronic Module (CEM), starter relay, Engine Control Module (ECM), Supplemental Restraint System (SRS) (2003–2007) | 10 |
| F26 | Climate control blower motor | 30 |
| F27 | Spare | - |
| F28 | Upper Electronic Module (UEM), interior courtesy lighting, vanity mirror lamps, rain sensor | 10 |
| F29 | Integrated cellular telephone module | 10 |
| F30 | Position / parking lamps (front and rear left) | 7.5 |
| F31 | Position / parking lamps (front and rear right), license plate lamps | 7.5 |
| F32 | Central Electronic Module (CEM), interior courtesy lamps, vanity mirror lamps | 10 |
| F33 | Fuel pump | 15 |
| F34 | Power sunroof | 15 |
| F35 | Driver Door Module (DDM) – central locking, power window, power mirror | 25 |
| F36 | Passenger Door Module (PDM) – central locking, power window, power mirror | 25 |
| F37 | Power windows (rear), child safety door locks (rear) | 30 |
| F38 | Anti-theft alarm siren | 5 |
In the Engine Compartment
Located under the protective cover near the driver-side (left) strut tower.
Fuse box location and cover removal.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F1 | Auxiliary heater control module | 25 |
| F2 | Auxiliary equipment / options | 20 |
| F3 | Engine Control Module (ECM) – Bi-Fuel, brake vacuum pump (2002) | 15 |
| F4 | Heated Oxygen Sensors (HO2S), Engine Control Module (ECM) (Diesel) | 20 |
| F5 | Engine Control Module (ECM) (Gasoline) | 15 |
| F6 | 15 | |
| F7 | Electronic Throttle Module (ETM), Engine Control Module (ECM) (Gasoline) | 10 |
| F8 | Accelerator Pedal Position (APP) sensor, A/C compressor clutch relay, radiator cooling fan relay | 10 |
| F9 | Horn | 15 |
| F10 | Tailgate window washer pump | 10 |
| F11 | Engine Control Module (ECM), glow plug relay, crankcase ventilation PTC heater (Diesel) | 20 |
| F12 | Brake lamps | 5 |
| F13 | Windshield wiper motor | 25 |
| F14 | Anti-lock Braking System (ABS) / Dynamic Stability & Traction Control (DSTC) | 30 |
| F15 | Engine Control Module (ECM) – Bi-Fuel system | 15 |
| F16 | Headlamp washer/wiper, windshield washer pump | 15 |
| F17 | Headlamp low beam (right) – Bi-Xenon | 10 |
| F18 | Headlamp low beam (left) – Bi-Xenon | 10 |
| F19 | Anti-lock Braking System (ABS) / Dynamic Stability & Traction Control (DSTC) | 30 |
| F20 | Headlamp high beam (left) | 15 |
| F21 | Headlamp high beam (right) | 15 |
| F22 | Starter motor relay | 25 |
| F23 | Engine control main relay, Engine Control Module (ECM) | 5 |
| F24 | Unused | - |
| No. | Relay Modules | |
| 1 | - | |
| 2 | Engine Control Module (ECM) main relay | |
| 3 | Glow plug relay | |
| 4 | Starter motor relay | |
| 5 | Windshield wiper relay | |
| 6 | Bi-Fuel system relay | |
| 7 | - | |
| 8 | A/C compressor clutch relay | |
| 9 | Horn relay | |
| 10 | Windshield washer pump relay | |
| 11 | Windshield wiper motor speed relay | |
| 12 | Tailgate window washer pump relay | |
In the Cargo Area / Luggage Compartment
The fuse box is located behind the access panel on the left side of the cargo area. The panel layout varies depending on the model year.
Accessing the cargo area fuse panel.
| Diagram | ||
|---|---|---|
| No. | Description | A |
| Volvo V70 / XC70 models (2005–2007) | ||
|
||
| 1 | Reversing (backup) lamps | 10 |
| 2 | License plate lamps | 20 |
| Brake lamps | ||
| Tail lamps | ||
| Rear fog lamp | ||
| 3 | Auxiliary heater control module | 15 |
| Rear Electronic Module (REM) | ||
| 4 | Spare | 10 |
| 5 | Power antenna module | 10 |
| 6 | CD changer | 7.5 |
| TV tuner | ||
| RTI Navigation system | ||
| Audio control module | ||
| 7 | Driver Information Module (DIM) | 15 |
| Audio system | ||
| 8 | 12V auxiliary power outlet (cargo area) | 15 |
| 9 | Door control module (rear right window) | 20 |
| Rear right power window switch | ||
| 10 | Door control module (rear left window) | 20 |
| Rear left power window switch | ||
| 11 | Spare | - |
| 12 | Spare | - |
| 13 | Fuel filter heater (Diesel) | 15 |
| 14 | Subwoofer / Audio system amplifier | 15 |
| 15 | Spare | - |
| 16 | Spare | - |
| 17 | Radio receiver module | 5 |
| 18 | Spare | - |
| 19 | Tailgate window wiper motor | 15 |
| 20 | Trailer wiring harness | 20 |
| Trailer Module (TRM) | ||
| 21 | Spare | 10 |
| 22 | Spare | - |
| 23 | Differential Electronic Module (DEM / Haldex AWD) | 7.5 |
| 24 | Active suspension control module (Four-C) | 15 |
| 25 | Spare | - |
| 26 | Park Assist Module (PAM / parking sensors) | 5 |
| 27 | Cargo area fuse panel #2 (fuses 20, 21, 23, 24, 26) | 30 |
| 28 | Rear door lock module (left) | 15 |
| Rear door lock module (right) | ||
| Fuel filler flap lock actuator | ||
| 29 | Trailer Module (TRM) – turn signals | 25 |
| Trailer Module (TRM) – brake lamps | ||
| Trailer Module (TRM) – main supply | ||
| 30 | Trailer Module (TRM) – brake lights | 25 |
| Trailer Module (TRM) – fog lamps | ||
| Trailer Module (TRM) – auxiliary supply | ||
| 31 | Cargo area fuse panel #2 (fuses 37, 38) | 40 |
| 32 | Spare | - |
| 33 | Spare | - |
| 34 | Spare | - |
| 35 | Spare | - |
| 36 | Spare | - |
| 37 | Heated rear window (defroster) | 20 |
| 38 | Heated rear window (defroster) | 20 |
| Volvo V70 / XC70 models (2000–2004) | ||
|
||
| F1 | Rear Electronic Module (REM) | 10 |
| F2 | Rear fog lamps | 10 |
| F3 | Brake lamps | 15 |
| F4 | Reversing lamps | 10 |
| F5 | Heated rear window, trailer power relay | 5 |
| F6 | Tailgate release solenoid | 10 |
| F7 | 12V auxiliary power outlet (cargo area) | 15 |
| F8 | Central locking – rear side doors, tailgate, fuel filler flap | 15 |
| F9 | Trailer module / towbar electrical connector | 20 |
| F10 | Audio system, RTI navigation system | 10 |
| F11 | Auxiliary accessories / equipment | 15 |
| F12 | Tailgate window wiper motor | 15 |
| F13 | Audio system | 5 |
| F14 | Brake lamps | - |
| F15 | Trailer module / towbar electrical connector | 20 |
| F16 | Unused | - |
| F17 |
|
7.5 |
| F18 | Fuel filter heater (Diesel) | 15 |
| 4 | Intermittent tailgate wiper relay | |
| 5 | Bi-Fuel system relay | |
| 6 | Climate control relay – rear A/C unit | |
| 7 | Tailgate release relay | |
| 8 | Unused | |
| 9 | Fuel filler flap release relay (unlock) | |
| 11 | Rear right door unlock relay | |
| 14 | Tailgate wiper motor relay | |
| 19 | Brake lamp shunt | |
| 20 | Tail lamp shunt | |
| 21 | Tail lamp shunt | |
| 22 | Cargo area auxiliary 12V outlet shunt | |
| 23 | Rear fog lamp shunt | |
| 25 | Trailer rear fog lamp relay | |
| 26 | Rear fog lamp relay | |
| 27 | Brake lamp relay | |
| 28 | Reversing lamp relay | |
| 29 | Rear central locking relay (deadlock system) | |
| 30 | Rear left door unlock relay | |
| 31 | Fuel filler flap lock relay / rear door locking relay | |
| 32 | Fuel filter heater relay (Diesel) | |
| 34 | Heated rear window relay | |
| 36 | Trailer module power relay | |
