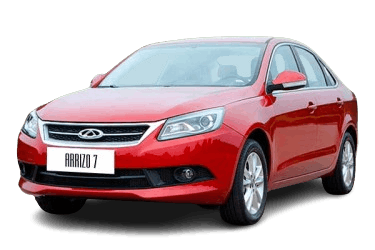

In this article, we provide detailed fuse box diagrams for the first-generation Chery Arrizo 7 (also designated as the Chery M16), covering the 2013, 2015, 2016, 2017, and 2018 model years.
Fuse RF09, located in the passenger compartment fuse block, protects the cigarette lighter circuit.
Luggage Compartment
The fuse block is located on the left side, directly above the cargo area lamp. To access it, you must remove a section of the interior trim.
| Diagram | |
|---|---|
|
|
| No. | Description |
| TF01 | Heated rear window |
| TF02 | Rear fog lamp |
| TF03 | Spare |
| TF04 | Tailgate lock |
| TF05 | Antenna amplifier |
| TRY01 | Tailgate lock relay |
| TRY02 | Heated rear window relay |
| TRY03 | Spare |
| TRY04 | Rear fog lamp relay |
Engine Compartment
The fuse block is located on the left side. To access it, remove the protective cover.
General overview.
| Engine Compartment Fuse Block Diagram: Chery Arrizo 7 | |
|---|---|
|
|
| No. | Description |
| EF01 | Ignition switch |
| EF02 | Power seat adjustment |
| EF03 | Engine immobilizer / Stop lamps |
| EF04 | Ignition switch |
| EF05 | PEPS / Transmission Control Module (TCM) (CVT models) |
| EF06 | ABS solenoid valves |
| EF07 | Passenger compartment fuse block (B+) |
| EF08 | ABS pump motor |
| EF09 | Spare |
| EF10 | Spare |
| EF11 | Transmission Control Module (TCM) (CVT models) |
| EF12 | Front fog lamps |
| EF13 | Headlamp leveling switch |
| EF14 | Low beam headlamp — Right |
| EF15 | Low beam headlamp — Left |
| EF16 | High beam headlamp — Right |
| EF17 | High beam headlamp — Left |
| EF18 | Engine push-start button (PEPS) |
| EF19 | Passenger compartment fuse block (IGN) |
| EF20 | Power sunroof |
| EF21 | Hazard warning lamp switch / Sunroof switch |
| EF22 | Backup lamps |
| EF23 | Rear parking assist system |
| EF24 | HVAC blower motor |
| EF25 | Power outlet |
| EF26 | Passenger compartment fuse block (ACC) |
| EF27 | Horn |
| EF28 | A/C compressor |
| EF29 | Fuel pump |
| EF30 | Engine Control Module (ECM) |
| EF31 | Ignition coils |
| EF32 | Upstream oxygen sensor (HO2S) |
| EF33 | Fuel injectors |
| EF34 | Variable intake system / EVAP canister purge valve / Variable Valve Timing (VVT) solenoids |
| EF35 | Engine cooling fan relay |
| EF36 | Downstream oxygen sensor (HO2S) |
| EF37 | Engine Control Module (ECM) |
| EF38 | Spare |
| EF39 | Starter motor |
| FRY01 | Spare |
| FRY02 | Spare |
| FRY03 | Powertrain Control Module (PCM) relay |
| FRY04 | Front fog lamps relay |
| FRY05 | Low beam headlamp relay |
| FRY06 | High beam headlamp relay |
| FRY07 | Ignition relay (IGN 1) |
| FRY08 | Ignition relay (IGN 2) |
| FRY09 | HVAC blower motor relay |
| FRY10 | Accessory relay (ACC) |
| FRY11 | Horn relay |
| FRY12 | A/C compressor clutch relay |
| FRY13 | Fuel pump relay |
| FRY14 | Engine Control Module (ECM) relay |
| FRY15 | Spare |
| FRY16 | Starter motor relay |
Passenger Compartment
The fuse block is located behind the dashboard trim on the driver’s side. To access it, remove the glove box.
General overview.
| Diagram | |
|---|---|
|
|
| No. | Description |
| RF01 | Spare |
| RF02 | A/C system / Audio system / Gear selector (CVT models) / IGN 2 relay coil |
| RF03 | Supplemental Restraint System (SRS) |
| RF04 | Electronic Stability Program (ESP) / Steering Angle Sensor (SAS) |
| RF05 | Instrument cluster |
| RF06 | Spare |
| RF07 | PEPS / Engine Control Module (ECM) / Transmission Control Module (TCM) (CVT models) |
| RF08 | Body Control Module (BCM) / Electronic Power Steering (EPS) / Headlamp switch |
| RF09 | Cigarette lighter |
| RF10 | Audio system / Body Control Module (BCM) |
| RF11 | Spare |
| RF12 | Spare |
| RF13 | Power exterior mirrors / HVAC blower motor relay coil / ACC relay coil |
| RF14 | Spare |
| RF15 | Power sunroof / On-Board Diagnostics (OBD) port |
| RF16 | Spare |
| RF17 | Spare |
| RF18 | HVAC control module / A/C compressor clutch |
| RF19 | Audio system |
| RF20 | Instrument cluster |
