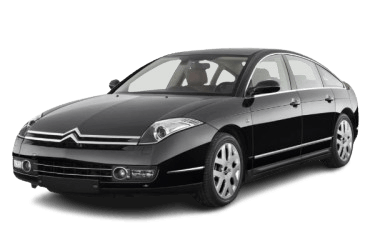

In 1999 at the Geneva Motor Show Citroen presented a futuristic concept C6 Lignage, many design and technical solutions of which were embodied in the production model of the flagship sedan E-class Citroen C6. However, the process of introducing the novelty into production was somewhat delayed - production began only in 2005. In this article, we will take a detailed look at the fuse box diagrams for the Citroen C6 (body TD) 2005, 2006, 2007, 2008, 2009, 2010, 2010, 2011 and 2012 years of manufacture.
Here you will find the locations and photos of distribution boxes. The fuses responsible for the “Cigarette lighter” and “Fuel Pump” are highlighted in bold.
In the luggage compartment
It's behind the trim on the left.
For access:
1. Pull back the trim on the left side.
2. Pull aside the electrical cables.
3. Open the unit.
General view of the Citroen C6 trunk fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Fuel filler flap | 15 |
| 2 | - | |
| 3 | - | |
| 4 | Adjustable deflector | 15 |
| 5 | Electrically heated rear window | 40 |
| G36 | Electric heated rear left seat (Pack Lounge) | 15/25 |
| G37 | Electric heated rear right seat (Pack Lounge) | 15/25 |
| G38 | Electrically adjustable rear seats (Pack Lounge) | 30 |
| G39 | Rear cigarette lighter fuse - Rear 12V power outlet | 30 |
| G40 | Electric parking brake | 25 |
In the passenger compartment
Located on the driver's side (left-hand drive) or behind the glove box (right-hand drive).
To access, open the glove box and then remove the cover.
| Diagram | ||
|---|---|---|
| No. | Description | A |
| Top board | ||
|
||
| G29 | Tire pressure sensors - 6-CD changer | 5 |
| G30 | Diagnostic connector | 5 |
| G31 | Telematics facilities by importing country | 5 |
| G32 | Amplifier | 25 |
| G33 | Hydraulic suspension system | 10 |
| G34 | Automatic transmission | 15 |
| G35 | Electrically heated front passenger seat | 15 |
| G36 | Heated driver's seat | 15 |
| G37 | Empty | - |
| G38 | Power driver's seat | 30 |
| G39 | Empty | - |
| G40 | Power passenger seat | 30 |
| Bottom board | ||
|
||
|
||
| F1 | - | |
| F2 | - | |
| F3 | Airbags | 5 |
| F4 | Brake system - Anti-trap bonnet - Speed limiter - Cruise control - Rear view mirror with polarization function - Diagnostic socket - Multifunction screen tilt actuator | 10 |
| F5 | Front Power Windows - Sunroof | 30 |
| F6 | Rear power windows | 30 |
| F7 |
|
5 |
| F8 | Steering wheel mounted control keys - Display - Window opening (Micro window release function) - Alarm system - Car stereo | 20 |
| F9 | Front cigarette lighter fuse Citroen C6 | 30 |
| F10 |
|
15 |
| F11 | Anti-theft device | 15 |
| F12 | Driver and front passenger seatbelt sensor - Opening the windows (Micro window release function) | 15 |
|
||
| F13 | Trauma-proof hood - Precipitation and light sensor - Windshield wiper - Power relay unit power supply | 5 |
| F14 | AFIL system - Automatic climate control system - Instrument cluster - Windshield display system - Airbags - Bluetooth® wireless headset for radiotelephone (Hands Free) - Relay for hydraulic unit | 15 |
| F15 | Power-operated central locking - Safety system for the transportation of children | 30 |
| F16 | SHUNT | |
| F17 | Ventilation system | 40 |
In the engine compartment
It is located behind the protective cover on the left side of the underhood.
| Diagram | ||
|---|---|---|
General view. |
||
Diagram. |
||
| No. | Decoding | A |
| 1 | Electronic engine control unit - Cooling radiator motor unit | 20 |
| 2 | Horn (beep) | 15 |
| 3 | Washer pump | 10 |
| 4 | Headlight washers | 20 |
| 5 | Engine preheating - Injection system (Diesel engine) | 15 |
| 6 | Brake system | 10 |
| 7 | Automatic transmission | 10 |
| 8 | Starter | 20 |
| 9 | Injury-proof hood - Dual-lamp xenon headlights with beam correction depending on the angle of rotation of the front wheels | 10 |
| 10 | Injectors - Ignition coil - ECM - Fuel supply (Diesel engine) | 30 |
| 11 | Automatic climate control system (Fan) | 40 |
| 12 | Windshield wiper | 30 |
| 13 | BSI control unit | 40 |
| 14 | Empty | - |
