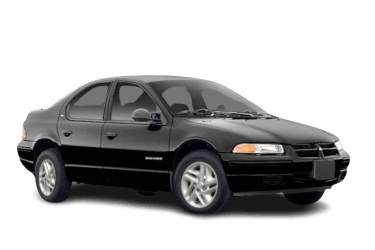

This article provides a detailed overview of the fuse box diagrams for the first-generation Dodge Stratus (JA platform), covering the 1995, 1996, 1997, 1998, 1999, and 2000 model years.
Fuse #8 in the interior fuse panel protects the cigarette lighter circuit.
Engine Compartment (Power Distribution Center)
Located near the air cleaner assembly, beneath the protective cover.
Reference photograph.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| R1 | Cooling Fan (High Speed) | |
| R2 | Automatic Shutdown (ASD) Relay | |
| R3 | Cooling Fan (Low Speed) | |
| R4 | Starter Motor Relay | |
| R5 | Unused | |
| R6 | A/C Compressor Clutch Relay | |
| R7 | Unused | |
| R8 | Wiper Relay (Intermittent) | |
| R9 | Wiper Relay (High/Low Speed) | |
| R10 | Fuel Pump Relay | |
| R11 | Transmission Control Relay | |
| R12 | Unused | |
| 1 | Downstream Oxygen (O2) Sensor | 10 A |
| 2 | Anti-lock Braking System (ABS) Module | 20 A |
| 3 | Transmission Control Module (TCM), Transmission Control Relay | 20 A |
| 4 | Stop Lamp Switch, Fuse #5 in the Interior Fuse Panel | 20 A |
| 5 |
|
20 A |
| 6 | Sentry Key Immobilizer Module (SKIM), Combination Flasher (Turn Signals, Siren) | 20 A |
| 7 | Ignition Switch – Fuse #11 in the Interior Fuse Panel | 10 A |
| 8 |
|
20 A |
| 9 | Brake Transmission Shift Interlock (BTSI) Solenoid, A/C Compressor Clutch Relay, Cooling Fan Relays (High and Low Speed), Fuel Pump Module, Sentry Key Immobilizer Module (SKIM), Instrument Cluster | 10 A |
| 10 | Anti-lock Braking System (ABS) Module, Powertrain Control Module (PCM), Fuel Pump Relay | 10 A |
| 11 | Unused | |
| 12 | Rear Window Defogger Relay | 40 A |
| 13 | Anti-lock Braking System (ABS) | 40 A |
| 14 | Fuses #7 and #8 in the Interior Fuse Panel | 40 A |
| 15 |
|
40 A |
| 16 | Ignition Switch – Fuses #1, #4, #16, and #19 in the Interior Fuse Panel | 40 A |
| 17 | Unused | - |
| 18 | Wiper Relay (Intermittent, High/Low Speed) | 40 A |
| 19 | A/C Compressor Clutch Relay, Cooling Fan (High and Low Speed) | 40 A |
Passenger Compartment Fuse Panel
The interior fuse panel is located on the left side of the dashboard, behind the trim cover.
Reference photograph.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| R1 | Headlamp Delay Relay | - |
| R2 | Horn Relay | - |
| R3 | Rear Window Defogger Relay | - |
| 1 | HVAC Blower Motor | 30 A |
| 2 | Daytime Running Lamp (DRL) Module, Right High Beam Headlamp | 10 A |
| 3 | Left High Beam Headlamp | 10 A |
| 4 |
|
15 A |
| 5 | Data Link Connector (DLC), Dome Lamp, Overhead Map Lamps, Power Antenna, Trip Computer (Traveler), Trunk/Cargo Lamp, Body Control Module (BCM), Glove Box Lamp, Radio/Audio System, Vanity Mirror Lamps, Universal Garage Door Opener (HomeLink), Illuminated Entry Relay, Automatic Dimming Rearview Mirror, Power Door Lock Switch, Courtesy Lamps, Door Arm/Disarm Switch, Ignition Key Halo Lamp, Sunroof/Moonroof | 10 A |
| 6 | A/C and Heater Control (HVAC), Heated Mirrors | 10 A |
| 7 | 1998 and later: Headlamp Switch, Instrument Cluster | 20 A |
| 1995–1997: Headlamp Switch | 15 A | |
| 8 | Horn Relay, Power Outlet, Dodge Stratus Cigarette Lighter Circuit | 20 A |
| 9 | Body Control Module (BCM) | 15 A |
| 10 | Daytime Running Lamp (DRL) Module, Rear Fog Lamp Switch | 20 A |
| 11 | Instrument Cluster, Body Control Module (BCM), Transmission Control Module (TCM), AutoStick Switch | 10 A |
| 12 | Daytime Running Lamp (DRL) Module, Left Low Beam Headlamp | 10 A |
| 13 | Front Fog Lamp Switch, Right Low Beam Headlamp | 20 A |
| 14 | Radio/Audio System | 10 A |
| 15 | Intermittent Wiper Relay, Combination Flasher, Rear Window Defogger Relay, Wiper Relay (High/Low Speed) | 10 A |
| 16 | Supplemental Restraint System (SRS) / Airbag Control Module | 10 A |
| 17 | 10 A | |
| 18 | Circuit Breaker: Trunk Release Relay, Power Seat Switch | 20 A |
| 19 | Circuit Breaker: Master Power Window Switch, Power Windows, Sunroof/Moonroof Control Unit, Power Window Timer Module | 20 A |
