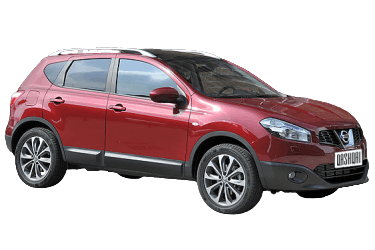

The Nissan Qashqai is a compact crossover that entered production in 2006. The Qashqai+2 is a 7-seater variant featuring an extended wheelbase. In the US market, it is sold as the Rogue Sport. The first generation is designated as J10 and was produced from 2007 to 2012. The second generation (J11) was produced from 2013 to 2020. This guide provides detailed technical specifications for first-generation Nissan Qashqai (chassis code J10; C platform) fuse boxes and relays, including location diagrams, photos, and component assignments. Specific fuses for the cigarette lighter and power sockets are highlighted separately.
Please note that fuse box configurations, component layouts, and circuit diagrams may vary depending on the destination market, model year, and equipment trim level. Always cross-reference this manual with the diagram printed on the inside of your vehicle’s fuse box cover.
Passenger Compartment
The fuse box is located inside the dashboard. Pull the access cover outward to reach the panel.
| Diagram | |
|---|---|
|
|
| No. | Description |
| F1 | 10A Audio system, power exterior mirrors |
| F2 | 15A Front power socket (cigarette lighter) |
| F3 | Spare |
| F4 | 10A Air conditioning, electric cabin heater |
| F5 | 15A Blower motor |
| F6 | 15A Blower motor |
| F7 | 10A Auxiliary equipment |
| F8 | 15A CVT / Manual transmission sensors |
| F9 | 15A Audio system |
| F10 | 10A Stop lamps (brake lights) |
| F11 | Spare |
| F12 | 10A Body Control Module (BCM) |
| F13 | 10A Interior electrical equipment |
| F14 | 15A Rear power socket (if equipped) |
| F15 | 10A Heated exterior mirrors |
| F16 | 10A Body Control Module (BCM) |
| F17 | 15A Interior electrical equipment |
| F18 | 20A Windshield wiper motor gear |
| F19 | 10A Supplemental Restraint System (SRS airbags) |
| F20 | 10A Heated seats |
| R1 | Auxiliary interior equipment relay |
| R2 | Blower motor relay |
The front cigarette lighter is protected by 15A fuse No. 2, labeled as “POWER SOCKET” on the cover diagram.
Engine Compartment
The engine compartment houses three separate fuse and relay boxes.
Fuse Box A
To open, squeeze the side retainers on the cover and lift.
| Diagram | |
|---|---|
|
|
| No. | Description |
| F1 | 15A Heated rear window |
| F2 | 15A Heated rear window |
| F3 | 15A Front fog lamps |
| F4 | 30A Windshield wipers |
| F5 | 15A Right low-beam headlight |
| F6 | 15A Left low-beam headlight |
| F7 | 10A Right high-beam headlight |
| F8 | 10A Left high-beam headlight |
| F9 | 10A Parking / clearance lamps |
| F10 | Spare |
| F11 | 15A Transmission Control Module (TCM) |
| F12 | 20A Engine Control Module (ECM) |
| F13 | 10A A/C compressor clutch |
| F14 | 10A Reversing lamps |
| F15 | 10A Transmission control system |
| F16 | 10A Engine management system |
| F17 | 15A Fuel pump |
| F18 | 10A Fuel injection system |
| F19 | 10A ABS hydraulic electronic control unit (HECU) |
| F20 | Spare |
| R6 | Ignition system relay |
| R8 | Heated rear window relay |
| R16 | Radiator cooling fan low-speed relay I |
| R17 | Radiator cooling fan high-speed relay II |
Fuse Box B
The second box is opened using the same side-latch mechanism.
| Diagram | |
|---|---|
|
|
| No. | Description |
| F1 | 20A Charge air cooler fan (turbodiesel) |
| F2 | 10A 4WD / AWD selector switch |
| F3 | 10A Alternator |
| F4 | 10A Horn |
| FL5 | 60A/30A Electric Power Steering (EPS), headlight washer pump, ABS module |
| F6 | 40A ABS / Electronic Stability Program (ESP) |
| F7 | 30A Electric cabin PTC heater (diesel models) |
| F8 | 30A Electric cabin PTC heater |
| F9 | 30A Electric cabin PTC heater |
| F10 | Spare |
| FL11 | 50A/30A/40A Radiator cooling fan, ignition switch |
| F12 | 40A Body Control Module (BCM) |
| R3 | Horn relay |
| R4 | Radiator cooling fan relay |
| R5 | Headlight washer pump relay |
Fuse Box C
Mounted directly on the positive battery terminal, this box contains high-current fusible links.
