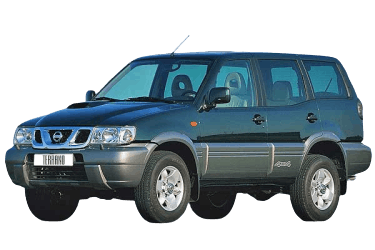

The Nissan Terrano II (known in Japan as the Nissan Mistral) is a body-on-frame SUV manufactured at Nissan's plant in Barcelona, Spain. This article provides comprehensive fuse box diagrams and circuit layouts for the second-generation Nissan Terrano 2 (R20 chassis) covering model years 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, and 2005.
Fuse F2 in the passenger compartment fuse box protects the cigarette lighter electrical circuit.
In the engine compartment
The fuse box is located on the right side of the engine compartment.
Representative example.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| A | Engine compartment fuses E, F, I, H; passenger compartment fuses 4, 5, 16, 22; ignition relay, charging system, rear window defogger relay | 100 |
| B | ABS / ESP system | 40 |
| C | Ignition switch, accessory relay | 40 |
| D | ABS / ESP system | 40 |
| E | Radiator cooling fan control | 30 |
| F | Circuit breaker | 40 |
| G | Spare | - |
| H | Cigarette lighter, accessory relay | 30 |
| I | Glow plug system | 80 |
| R1 | Horn relay | - |
| R2 | Accessory relay | - |
| R3 | Engine control module (ECM) relay | - |
| R4 | Air conditioning (A/C) relay | - |
| R5 | Radiator cooling fan relay (except RHD manual transmission models) | - |
| 1 | Mass air flow (MAF) sensor, diesel fuel injection pump, accelerator pedal position (APP) sensor, main power supply and ground circuits, exhaust gas recirculation (EGR) system, turbocharger boost control solenoid valve, variable intake manifold control valve | 15 |
| 2 | Charging system / Generator | 10 |
| 3 | Main power supply and ground circuits, MAF sensor, diesel fuel injection pump, diesel glow plugs, EGR valves, EVAP canister purge valve, APP sensor, variable intake manifold control valve, turbocharger boost control valve, torque converter clutch solenoid (A/T), electronic throttle control, NATS anti-theft security system | 20 |
| 4 | Audio system, keyless entry receiver, malfunction indicator light (MIL) / data link connector (DLC) | 15 |
| 5 | Combination light switch, daytime running lights (DRL) | 10 |
| 6 | Horn | 10 |
| 7 | Daytime running lights (DRL), headlamps | 15 |
| 8 | Daytime running lights (DRL), headlamps | 15 |
| 9 | Glow plug system | 10 |
| 10 | Spare | - |
In the passenger compartment
Fuse box
Located behind the instrument panel access panel on the driver's side.
General overview.
| Diagram | ||
|---|---|---|
Front view. |
||
Rear view. |
||
| No. | Description | Amps |
| 1 | Heated rear window (rear defogger) | 10 |
| 2 | Nissan Terrano II cigarette lighter fuse | 15 |
| 3 | Keyless entry receiver, audio system, power mirrors | 10 |
| 4 | Stop lamps, ABS module, stop lamp switch | 15 |
| 5 | Central door locking system, Timer Control Unit (TCU), anti-theft security system, keyless entry receiver | 10 |
| 6 | Windshield wiper and washer system | 20 |
| 7 | Manual air conditioning system | 15 |
| 8 | Automatic transmission fluid (ATF) temperature sensor, Park/Neutral position (PNP) switch (A/T), Transmission Control Module (TCM), main power supply and ground circuits, starter system, reversing lamps, instrument cluster warning lamps, navigation system | 10 |
| 9 | Seat heaters | 10 |
| 10 | Blower motor / heating system, manual air conditioning | 15 |
| 11 | Main power supply and ground circuits, daytime running lights (DRL), control unit relay, anti-theft security system | 10 |
| 12 | Reversing lamps, tachometer, speedometer, coolant temperature gauge, fuel gauge, charging system, Supplemental Restraint System (SRS), ABS module, clock, instrument cluster warning lamps, malfunction indicator light (MIL) / data link connector (DLC), vehicle speed sensor (VSS), diesel glow plugs | 10 |
| 13 | Headlamp washer | 10 |
| 14 | Heated rear window (rear defogger) | 15 |
| 15 | Heated rear window (rear defogger) | 15 |
| 16 | Main power supply and ground circuits, vehicle speed sensor (VSS), coolant temperature gauge, Transmission Control Module (TCM), interior lighting, speedometer, tachometer, fuel gauge, warning chime, central door locking system, clock, keyless entry receiver, anti-theft security system | 10 |
| 17 | Spare | |
| 18 | Rear window wiper and washer system | 15 |
| 19 | ABS / ESP control module | 10 |
| 20 | Radiator cooling fan control module, heating system, A/C cut-off relay, manual air conditioning | 10 |
| 21 | Headlamp washer, windshield wiper and washer system, rear window wiper and washer system | 10 |
| 22 | Front fog lamp relay | 15 |
| 23 | Supplemental Restraint System (SRS / Airbags) | 10 |
| 24 | Swirl control valve, heater control, variable-geometry turbocharger control valve, main power supply and ground circuits | 10 |
| 25 | Spare | - |
| 26 | Timer Control Unit (TCU), malfunction indicator light (MIL) / diagnostic data link connector (DLC) | 10 |
| 27 | Spare | - |
| 28 | Spare | - |
| 29 | Spare | - |
| R1 | Rear window defogger relay | -- |
| R2 | Power window relay | - |
| R3 | Front fog lamp relay | - |
| R4 | Ignition relay | - |
| R5 | Radiator cooling fan relay | - |
| CB | Circuit breaker | - |
For right-hand drive (RHD) vehicles, the fuse box location and internal fuse assignments are mirrored.
Auxiliary relay modules
Located adjacent to the main fuse box:
- R1 Door lock relay
- R2 Headlamp relay (left side)
- R3 Rear fog lamp relay
Located behind the dashboard trim on the passenger side:
- R4 Headlamp relay (right side)
- R5 Horn relay
- R6 Auxiliary power socket relay
- R7 Park/Neutral position (PNP) relay (automatic transmission)
For right-hand drive (RHD) vehicles, the door lock (R1) and headlamp (R2) relays are located on the left (passenger) side, while the remaining relay modules (R3–R7) are located on the right (driver) side near the passenger compartment fuse box.
