The main electrical circuits of this French crossover are protected by fuses. High-current consumers are connected via relays. Most protective elements are located in the distribution boxes in the passenger compartment and under the hood.

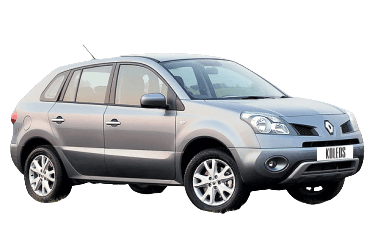

The diagram information applies to 1st-generation Renault Koleos (chassis code HU0; Renault–Nissan C platform) models produced from 2007 through 2016.
Passenger Compartment
Fuse Box
Located on the driver’s side, at the bottom of the dashboard.
General View.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| 1 | Spare | 10 |
| 2 | Airbag and seat belt pretensioner ECU | 10 |
| 3 | Fuel injection ECU, brake light switch, diagnostic link connector (DLC), A/C ECU, headlight leveling motor | 10 |
| 4 | Instrument cluster | 10 |
| 5 | Fuse block base unit (Block 1876) | 15 |
| 6 | Anti-theft alarm ECU, HID headlight ECU, clutch pedal end-of-travel sensor, alarm horn, seat belt reminder module | 10 |
| 7 | Brake light switch | 10 |
| 8 | Audio amplifier | 20 |
| 9 | Spare | 10 |
| 10 | Body Control Module (UCH), keyless engine start/stop switch, rain and light sensor | 10 |
| 11 | Instrument cluster, clutch pedal position sensor | 10 |
| 12 | Transmission Control Module (TCM) | 10 |
| 13 | Power side mirror drive | 10 |
| 14 | Heated rear window (defogger) | 20 |
| 15 | Climate control panel | 20 |
| 16 | Spare | 15 |
| 17 | 2nd-row auxiliary power sockets | 15 |
| 18 | Cigarette lighter socket | 15 |
| 19 | Instrument cluster | 10 |
| 20 | Auxiliary power sockets (12V) | 15 |
| 21 | Automatic climate control | 15 |
| 22 | Blower motor | 15 |
| 23 | Spare | - |
| 24 | Spare | - |
| 25 | Spare | - |
| 26 | Spare | - |
| 27 | Spare | - |
Relay Box
Diagram.
| A | Switched ignition relay (+15) |
| B | Auxiliary relay |
| C | Heated rear window and heated side mirror relay |
| D | Passenger compartment blower motor relay 1 |
| 1615 | Engine-running power relay (+61 / D+) |
Engine Compartment
Under the hood, there are four main fuse boxes: Boxes 1 and 2 are located on the right side, Box 3 is near the windshield washer reservoir, and Box 4 is on the left side (installed on diesel engines only).
To access the main boxes (1 and 2), remove the air intake duct.
Fuse Box 1
General View.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Electronic steering column lock | 10 |
| F2 | Engine management system | 10 |
| F3 | Engine management system | 10 |
| F4 | Front fog lights | 10 |
| F5 | A/C and heater system | 10 |
| F6 | Windshield wipers | 30 |
| F7 | Right headlight | 15 |
| F8 | Left headlight | 15 |
| F9 | Spare | 10 |
| F10 | Left headlight | 10 |
| F11 | Right headlight | 10 |
| F12 | Steering column switches | 10 |
| F13 | Fuel pump (gasoline engines) | 15 |
| F14 | Spare | 15 |
| F15 | Spare | 10 |
| F16 | Spare | 10 |
| F17 | Engine management system | 15 |
| F18 | Spare | 10 |
| R17 | Radiator fan relay 1 | |
| R18 | Radiator fan relay 2 | |
| R19 | Radiator fan relay 3 | |
| R20 | Starter relay | |
Fuse Box 2
General View.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Heated seats | 15 |
| F2 | Electric water pump relay (573), water-in-fuel sensor (414), fuel injection ECU (120), Protection and Switching Unit (UPC) | 10 |
| F3 | Daytime running light (DRL) main relay fuse | 10 |
| F4 | Alternator | 10 |
| F5 | Electric power steering (EPS) | 60 |
| F6 | Headlight washer pump relay | 30 |
| F7 | ABS ECU (118) / ABS/ESP control module | 30 |
| F8 | ABS/ESP ECU (118) | 40/50 |
| F9 | Engine cooling and A/C fan fuse, cooling fan assembly, cooling fan relay (234), engine cooling fan relay 2 | 50 |
| F10 | Driver door power window motor, Body Control Module / UCH (645), power sunroof motor | 40 |
| F11 | Passenger compartment fuse and relay box (260), Protection and Switching Unit / UPC (1337) | 30 |
| F12 | Protection and Switching Unit (UPC), engine cooling fan relay 2 | 50 |
| F13 | Audio system, hands-free telephone ECU, clock / ambient temperature display, navigation ECU (662) video display, CD changer, multimedia keypad, multiplex network interface unit (1714), TV tuner | 20 |
| F14 | Auxiliary heater relay 2 | 30 |
| F15 | Auxiliary heater relay 1 | 30 |
| F16 | Transmission Control Module (TCM) | 10 |
| M01 | Electronic parking brake ECU | 30 |
| M02 | Rear air conditioning | 20 |
| M03 | Auxiliary heater relay 3 | 30 |
| M04 | Not used | |
| 234 | Engine cooling fan assembly relay | |
| 288 | Daytime running light main relay | |
| 753 | Headlight washer pump relay | |
| 1524 | Brake light relay | |
| 1988 | Engine cooling fan relay 2 | |
| R | Horn relay | |
Fuse Box 3
Located next to the windshield washer reservoir.
| Diagram | |
|---|---|
|
|
| No. | Description |
| 234 | Engine cooling fan assembly relay |
| 288 | Daytime running light main relay |
| 573 | Electric water pump relay |
| 1069 | Auxiliary heater relay 3 |
| 1524 | Brake light relay |
Main Power Fuse Block
Located on the positive battery terminal.
| Diagram | ||
|---|---|---|
|
||
| F1 | Starter, alternator | 450 |
| F2 | Engine compartment fuse box | 100 |
| F3 | 100 | |
| F4 | 80 | |
| F5 | Passenger compartment distribution box | 100 |
| F6 | Glow plug control module (diesel preheat unit) | 60 |
General Overview & Component Locations
Location of electrical equipment on the Renault Koleos.
|
|
| No. | Component |
| 1 | ABS control module |
| 2 | Heater / A/C blower motor resistor (in heater assembly) |
| 3 | Air conditioning control module |
| 4 | Battery |
| 5 | CAN gateway control module |
| 6 | Diagnostic Link Connector (DLC) |
| 7 | Electronic parking brake control module (luggage compartment) |
| 8 | Engine Control Module (ECM) – Diesel |
| 9 | Engine Control Module (ECM) – Petrol |
| 10 | 4WD control module |
| 11 | Engine compartment fuse boxes |
| 12 | |
| 13 | |
| 14 | Fuse box (Diesel) |
| 15 | Passenger compartment fuse box |
| 16 | Xenon headlight control unit |
| 17 | Horns |
| 18 | Multifunction Control Module (UCH) – Functions: A/C / Heater, Audio / Navigation, Central Locking, Charging System, Power Windows, Exterior Lighting, Fuel Flap Opener, Heated Rear Window, Horns, Main Ignition Circuits, Engine Immobilizer, Interior Lighting, Power Steering, Rear Wiper, Starting System, Steering Column Lock, Windshield Wipers |
| 19 | Ambient temperature sensor |
| 20 | Parking assist control module (right side of luggage compartment) |
| 21 | SRS airbag control module |
| 22 | Hands-free phone module |
| 23 | Transmission Control Module (TCM) – Automatic Transmission |
| 24 | Tire Pressure Monitoring System (TPMS) control module |
