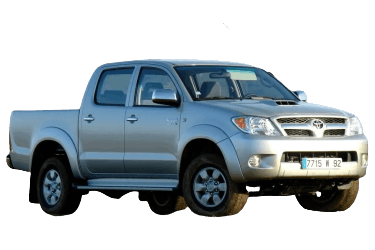

With the advent of the seventh generation, the Hilux pickup is finally becoming a global model. The production of the car is carried out according to the strategy of the project IMV (Innovative International Multipurpose Vehicle) and was launched almost simultaneously at four main production bases of Toyota: Thailand, Indonesia, Argentina and South Africa. The new model is intended for sale in over 140 countries. The car is built on a modified chassis of the previous generation with numerous technical improvements, while the platform has also been adapted for the Fortuner SUV. External dimensions, internal space, and carrying capacity have increased.
Most of the power circuits of the electrical equipment of the Japanese pickup truck are protected by fuses. Protective elements are installed in mounting blocks located in the passenger compartment and under the hood. Information on the diagrams is relevant for Toyota Hilux 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 models (AN10, AN20, AN30) with diesel 1KD-FTV (3.0 l.) , 2KD-FTV (2.5 liters) and gasoline 2TR-FE (2.7 liters) engines.
In the engine compartment
Fuse box located near the battery.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Current, A |
| 1 | Spare | 25 |
| 2 | 10 | |
| 3 | 15 | |
| 4 | Fog lamps | 15 |
| 5 | Horn | 10 |
| 6 | EFI engine management system | 25 |
| 7 | Additional heater PTC No. 1 | 50 |
| 8 | Power driver's seat | 30 |
| 9 | Additional heater PTC No. 2 | 50 |
| 10 | headlamp washer | 40 |
| 11 | Air conditioning, fuse "A / C" | 50 |
| 12 | ABS / TRC / VSC systems | 30 |
| 13 | 40 | |
| 14 | ALT : Charging system, fuses PWR SFAT "'H-LR CLN" "FR HTR" "AM1" "IG1" "PTC # 1", "PTC # 2", "PWR OUT", "STOP", "TAIL" and "OBD" | 100 |
| 15 | Glow plugs (diesel models) | 80 |
| 16 | Fuses "FOG", "HORN" and "EFI" | 50 |
| 17 | Ignition system, fuses "ST", "IGN", "INJ" and "MET" | 30 |
| 18 | Fuses "HlP RH", "H-LP LH", "H-LP RL" and "H-LP LL" | 40 |
| 19 | Right headlamp (low beam) | 15 |
| 20 | Left headlamp (low beam) | 15 |
| 21 | Right headlamp (high and low beam) | 15 |
| 22 | Left headlamp (high and low beam) | 15 |
| 23 | EFI No. 2 engine management system | 10 |
| 24 | ECU-B: Central locking, remote central locking system, headlamps, steering wheel position sensor | 10 |
| 25 | Radio cassette | 15 |
| 26 | Interior lamps, ignition switch lamps, gauges and indicators, clock, multifunction display, remote central locking system, daytime outdoor lighting system, fog lights and lamps | 7.5 |
| 27 | Exhaust gas emission control system | 20 |
| 28 | ALT-S charging system | 7.5 |
| 29 | Direction indicators and hazard warning lamps (turn signal / flasher) | 15 |
| 30 | Air conditioning | 7.5 |
| 31 | DCC: "ECU-B", "DOME" and "RAD" fuses | 30 |
| Relay modules | |
|
|
| R1 | Dimmer (DIM) |
| R2 | Headlamps |
| GLOW | |
| A Board | |
| R1 | Starter (ST) |
| R2 | 1TR-FE, 2TR-FE, 1GR-FE: Air Fuel Ratio Sensor |
| 1KD-FTV without DPF, 2KD-FTV without DPF, 5L-E: Glow plugs | |
| 1KD-FTV with DPF, 2KD-FTV with DPF: Air Fuel Ratio Sensor | |
| R3 | 1TR-FE, 2TR-FE, 1GR-FE: Fuel pump relay |
| 1KD-FTV with DPF, 2KD-FTV with DPF: None | |
In the passenger compartment
Main fuse box
Located on the driver's side, at the bottom of the dashboard.
Photo - an example of execution.
| Diagram | ||
|---|---|---|
|
||
| No. | Decoding of fuses | A |
| 1 | Connector for additional equipment PWR OUT | 15 |
| 2 | Instrument panel illumination, fog lamps, headlight range control, marker lamps, license plate illumination, engine management system, multifunction display, daytime outdoor lighting system, automatic headlight switching system | 10 |
| 3 | Brake lights, auxiliary brake light, engine management system, automatic transmission selector lock system, ABS / TRC / VSC systems | 10 |
| 4 | OBD self-diagnosis system | 7.5 |
| 5 | INJ engine management system | 15 |
| 6 | ECU-IG & GAUGE: Air conditioning, charging system, rear differential locking system, ABS / TRC / VSC systems, direction indicators and hazard warning lights, reversing lights, engine management system, automatic transmission selector lock system, rear window defogger, headlights, central locking , remote control for central locking, steering wheel position sensor, daytime running light, cruise control, headlight washer, heated front seats, heated side mirrors, multifunction display | 10 |
| 7 | Windshield wiper and washer | 20 |
| 8 | IGN: Engine management system, SRS system, fuel pump | 7.5 |
| 9 | Radio tape recorder, connector for additional equipment, clock, power mirrors, automatic transmission selector locking system, multifunction display | 7.5 |
| 10 | Cigarette lighter fuse Hilux 7 | 15 |
| 11 | Gauges, Diesel Particulate Filter Cleaning System | 7.5 |
| 12 | Air conditioning | 10 |
| 13 | ST: Starting system, gauges and indicators, engine management system | 7.5 |
| Back side of fuse box | ||
|
||
| R1 | Power outlet relay | |
| R2 | Heater relay | |
| R3 | Integrated relay | |
| 1 | Rear differential lock system, ABS, TRC, VSC, fuses: "ACC", "CIG", "ECU-IG & GAUGE", "WIP" - 40 Amps | |
| 2 | "PWR", "S-HTR", "4WD", "DOOR", "DEF", "MIR HTR" - 40 Amps | |
Additional fuse box
An additional unit is located behind the glove compartment on the passenger side.
Type 1
Diagram.
|
||
| No. | Protected chain | A |
| 1 | Heated side mirrors | 15 |
| 2 | Rear differential lock system, ABS / TRC / VSC systems | 20 |
| 3 | Front seat heaters | 15 |
| 4 | Heated rear window, engine management system | 20 |
| 5 | Central locking, power windows | 25 |
| 6 | Power windows | 30 |
|
||
| R1 | Heated mirrors (MIR HTR) | |
| R2 | Ignition (IG1) | |
| R3 | Heated rear window (DEF) | |
Type 2
Diagram.
|
||
| № | Description | A |
| 1 | Power door locks and power windows | 25 |
| 2 | Heated rear window and multiport fuel injection system / sequential multiport fuel injection system | 20 |
| 3 | Heated seats | 15 |
| 4 | Rear Differential Locking System, ABS, TRC and VSC | 20 |
| 5 | PWR - Glass lifters | 30 |
| R1 | Ignition (IG1) | |
| R2 | Heated rear window (DEF) | |
