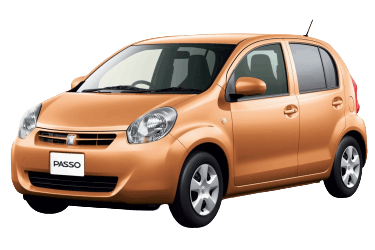

The Toyota Passo and Daihatsu Boon are the result of a joint venture between two Japanese automakers to produce a subcompact car in the strategically important 1.0-liter engine class. While the Toyota Passo is virtually identical to the Daihatsu Boon, this project was not a simple rebadging exercise (OEM badge engineering) like their predecessors, the Daihatsu Storia and Toyota Duet (1998–2004). Instead, the Passo and Boon were developed through an equal partnership between Toyota Motor Corporation and its subcompact-car specialist subsidiary, Daihatsu Motor. Toyota spearheaded the initial engineering design, while Daihatsu handled detailed layout, styling, and manufacturing.
This article provides detailed fuse box diagrams and terminal assignments for the Toyota Passo (chassis codes KGC10, KGC15, QNC10; Daihatsu A platform) model years 2004, 2005, 2006, 2007, 2008, 2009, and 2010.
Passenger Compartment Fuse Box
The passenger compartment fuse box is located on the passenger side behind a plastic trim panel.
General location overview.
| Passenger Compartment Fuse Assignment – Toyota Passo (XC10) | ||
|---|---|---|
|
||
| No. | Circuit Description | A |
| 1 | Starting system | 10 |
| 2 | Charging system, engine management system, automatic transmission control, ABS, SRS airbag system | 7.5 |
| 3 | Rear window defogger | 20 |
| 4 | Automatic transmission electronic control module, gear selector illumination, power windows, central locking system, "Key-Free" system, windshield wipers and washers, rear window wiper and washer, turn signals and hazard warning lights, reverse lights, manual air conditioning system, air ionizer | 7.5 |
| 5 | Anti-lock braking system (ABS), SRS airbag system, electric power steering (EPS), headlights (models with HID/xenon headlights from 11/2005 onwards) | 7.5 |
| 6 | Power mirrors, central locking system, "Key-Free" system, audio system | 7.5 |
| 7 | Toyota Passo cigarette lighter, auxiliary power outlet | 15 |
| 8 | Starting system, engine management system (K3-VE), engine management system (1KR-FE) | 7.5 |
| 9 | Central locking and "Key-Free" system | 15 |
| 10 | Unused | - |
| 11 | Turn signals and hazard warning lights | 10 |
| 12 | Unused | - |
| 13 | Windshield wipers and washers | 20 |
| 14 | Power windows | 30 |
| Relays | ||
| R1 | Starter relay | |
| R2 | Turn signal flasher relay | |
| R3 | Main power relay | |
| R4 | EFI main relay | |
| R5 | Horn relay | |
| R6 | Fuel pump relay | |
Engine Compartment Fuse Box
The engine compartment fuse box is located on the right side of the engine bay, adjacent to the battery.
General location view.
| Engine Compartment Fuse Box Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | A |
| 1 |
|
50 |
| 2 | Electric power steering (EPS) | 50 |
| 3 | AM1 ignition circuit | 40 |
| 4 | Anti-lock braking system (ABS) | 40 |
| 5 | Starting system | 30 |
| 6 | Radiator cooling fan motor | 30 |
| 7 | Power windows, auxiliary accessory connector | 30 |
| 8 | Manual air conditioning system and air ionizer | 40 |
| 9 | Unused | - |
| 10 | Left headlight (high beam) | 10 |
| 11 | Right headlight (high beam) | 10 |
| 12 | Left headlight (low beam) | 10 |
| 13 | Right headlight (low beam) | 10 |
| 14 | Left fog light | 10 |
| 15 | Right fog light | 10 |
| 16 | Engine management system (ECU) | 15 |
| 17 | Horn | 10 |
| 18 | Air conditioning system (A/C) | 10 |
| 19 | Brake lights | 15 |
| 20 | Spare / Audio system | 15 |
| 21 | Interior lighting | 15 |
| 22 | Instrument cluster, clock, parking lights | 10 |
| 23 | Anti-lock braking system (ABS) | 20 |
| 24 | Automatic transmission control unit, instrument backlighting | 10 |
| Relays | ||
| R1 | Heater blower motor relay | |
| R2 | Audio system relay | |
| R3 | Headlight relay | |
| R4 | Air conditioning compressor relay | |
| R5 | Fog light relay | |
